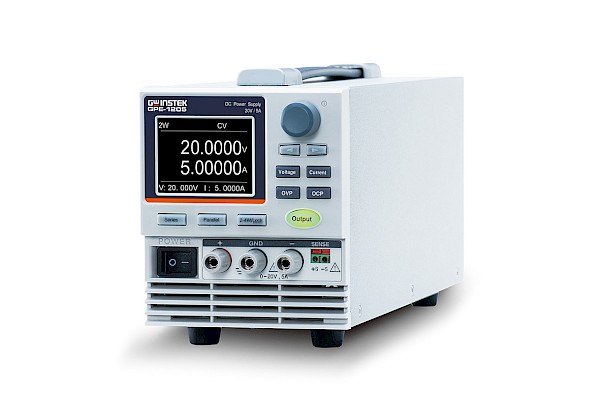

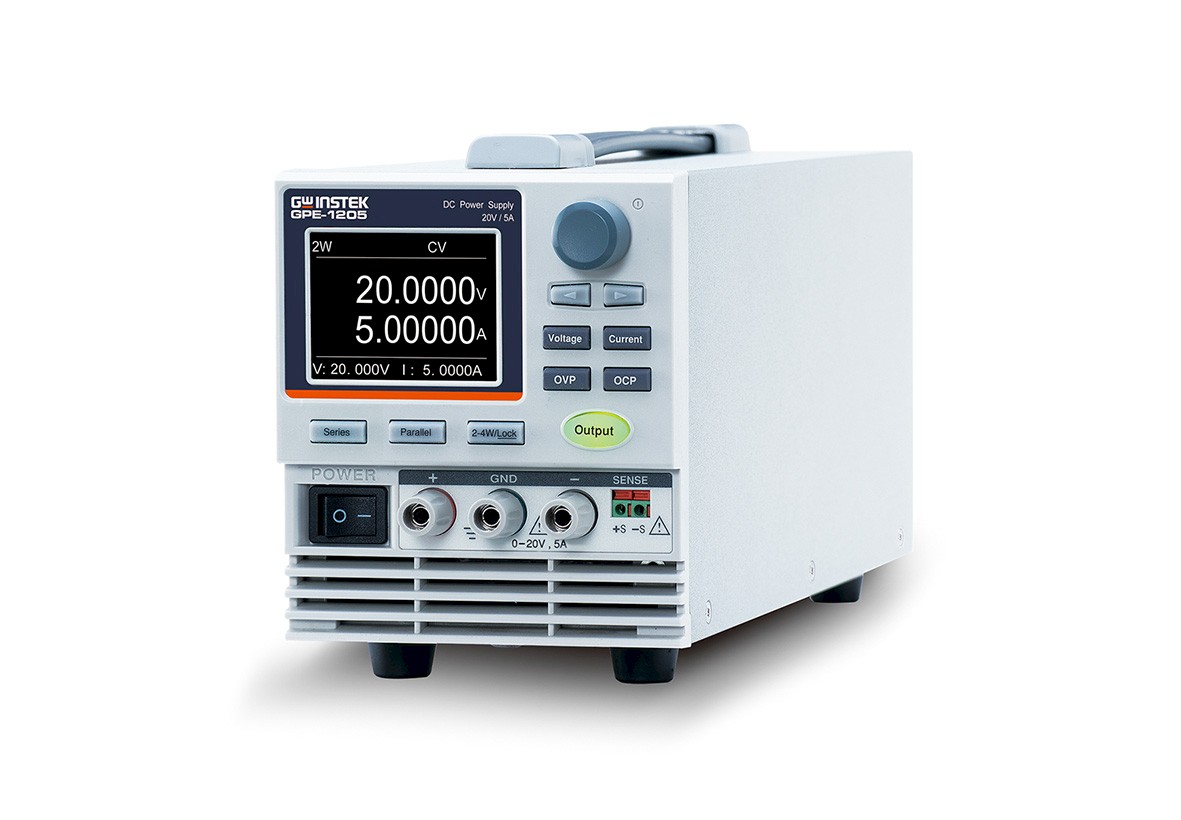

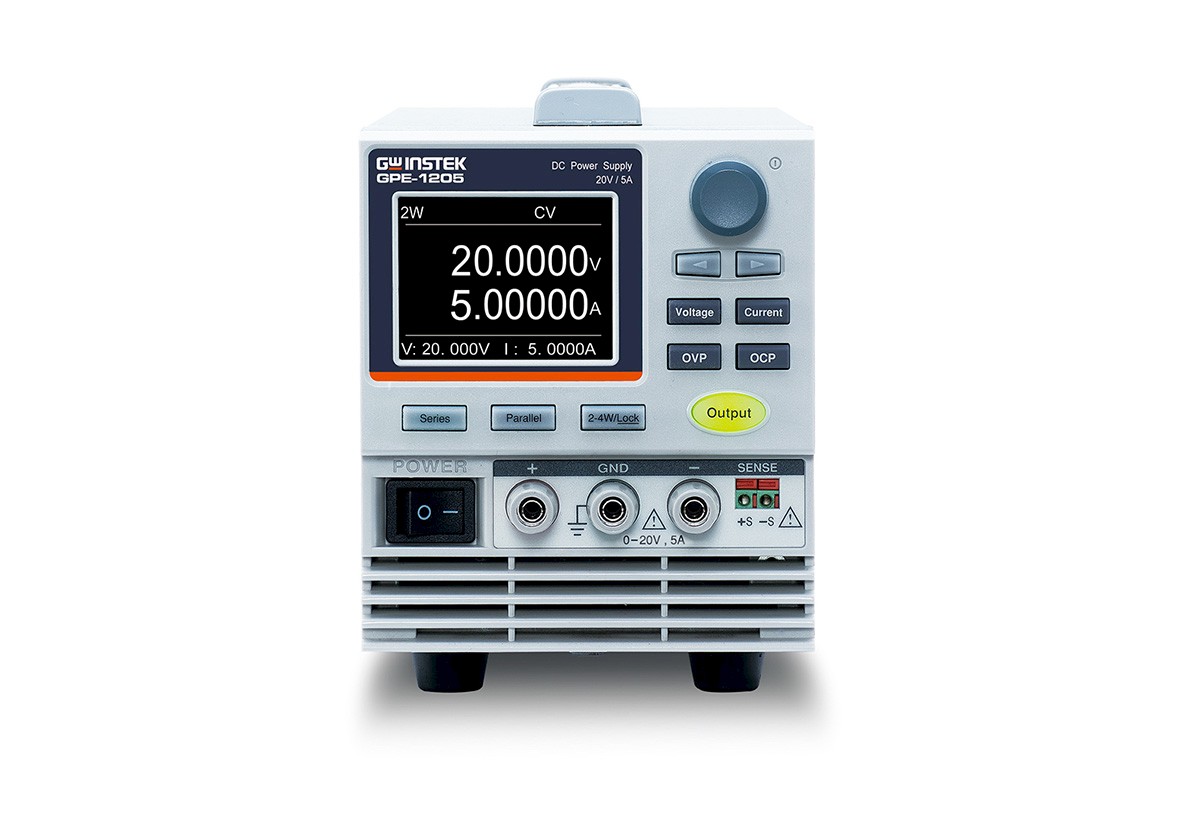

GPE-1205 Two Channel, 100 W Linear DC Power Supply

Honoring 40 Years of Legacy, Evolving for the Future. For battery-operated electronic products, high-quality audio circuits (amplifiers and speakers), and other similar applications, the low ripple & noise and fast transient response characteristics of linear power supplies make them the preferred choice for testing these applications. GW Instek's GPS-1850D, GPS-3030D, and GPS-3030DD 90 W linear power supplies have long term reputations in the industry. Due to the discontinuation of components such as displays (LED) and variable resistors (VR) for these three products, GW Instek unveil two models, GPE-1205 and GPE-1323, to replace these three 90 W products in the existing market, with the following new features: •Power increased from 90 W to 96 W and 100 W •New encoder switch to replace VR (variable resistance) •2.4" TFT LCD to replace LED •Provided hardware protections: OVP、OCP、OTP、On/Off switch、Key Lock •Voltage setting resolution 1 mV，Current setting resolution 0.1 mA •Voltage readback resolution 100 μV，Current readback resolution 10 μA •Provided Remote Sense (compensates voltage up to 1 V) •Can perform series/parallel connection of two GPE-1000 units of the same model through the rear panel Control I/O interface

Standard Accessories

Power Cord x 1, Packing List x 1, Test lead: Non-European: GTL-104A x 1 Test lead: European: GTL-204A x 1 Optional Accessories GTL-234 RS-232C cable, 9 pin, F-F Type GRA-441-J [JIS] Rack Mount Kit (up to 4 GPE-1000 units into rack) GRA-441-E [EIA] Rack Mount Kit (up to 4 GPE-1000 units into rack)
