Prestige / Harmony / Universal

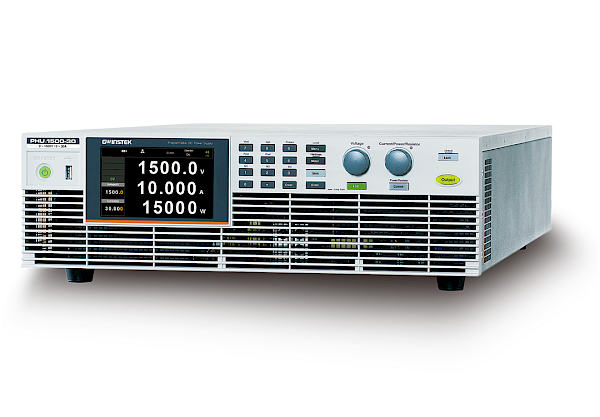

The PHU Series is a single-channel programmable DC power supply with a multi-range output feature which offers a wide range of voltage and current combinations for greater flexibility. The circuit design adopts SiC (silicon carbide) components to achieve high power density characteristics which can generate 15 kW of high output and keep the compact size at just 3U height. PHU's wide voltage and current range, along with its high-power characteristics, can cover a broader range of testing applications such as photovoltaic systems, electric vehicles (EVs), and automotive electronics, etc. The launch of PHU multi-range high power DC source enhances the completeness of the DC power supply product line of GW Instek, and provides customers with more comprehensive and integrated solutions. The AWS (Advanced Web Server) function allows the user to operate devices directly through a web browser, without needing to install any complicated software or drivers. This functionality allows users to complete tasks more efficiently, saving time and increasing productivity. The unique APC (Adaptive Parallel Connection) feature offers adaptability in parallel connection, allowing users to make the best choice according to their needs. For instance, users can opt for a 15 kW model and a 10 kW model to combine both to reach a 25 kW capacity within their budget constraints. Up to 10 PHU units can be connected to reach 150 kW without the need for additional power distribution for control. For industry interface, PHU provides a variety of embedded industrial interface options to meet user needs, eliminating the need for users to prepare additional interfaces. The available ports including EtherCAT, CANopen, Modbus, Profinet and DeviceNet, etc. Except the standard built-in programmable sequence function, PHU also offers a variety of optional functions including Datalogger, MPPT (Maximum Power Point Tracking), Solar Array Simulator, AH/WH Meter and Battery Simulation to meet customer’s requirements.

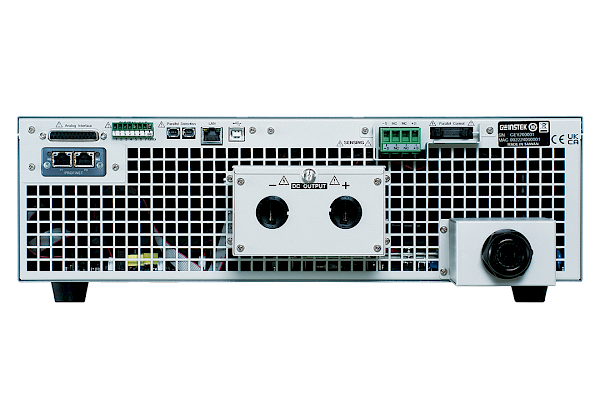

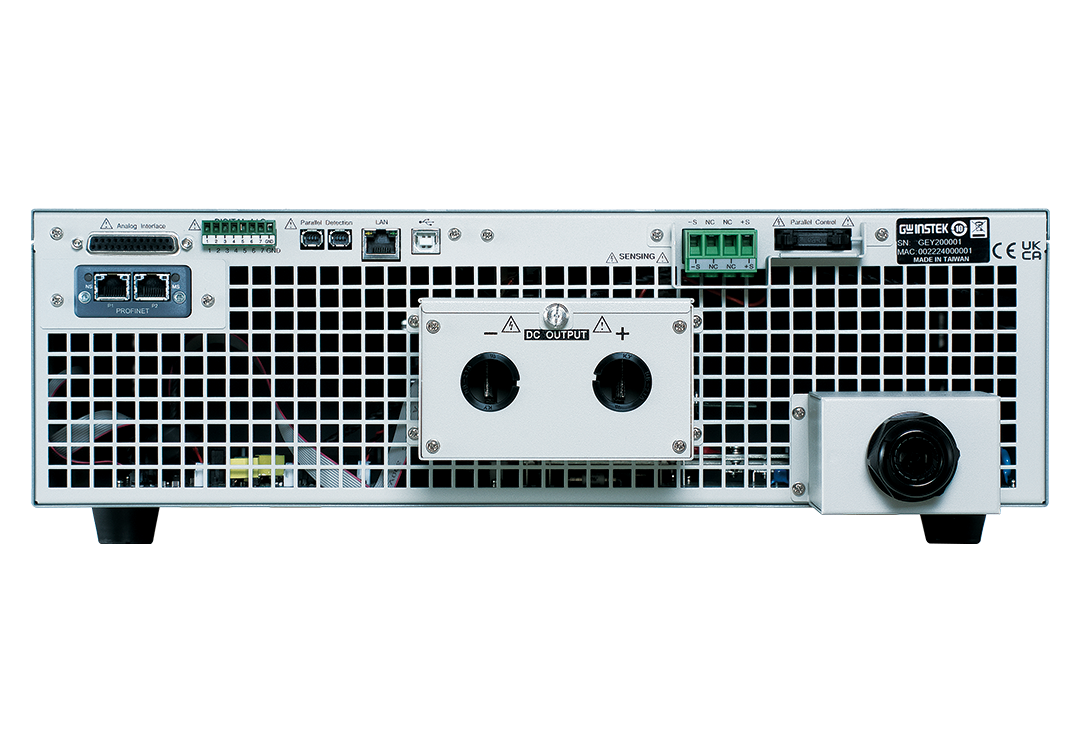

Accessories

AC Input terminal cover x 1, DC Output terminal cover x 1, Handle x 2, Sensing connector x 1, sensing connector cover x 1Digital I/O control connector x 1, Parallel control dummy connector x 1, DC Output terminal screws x 2, Safety Guide

Options (Factory Installed)

•PHU-IF01 GPIB interface •PHU-IF01 GPIB interface •PHU-IF02 RS-232&RS-485 interface card (RJ45) •PHU-IF03 Isolated Digital interface card •PHU-IF04 CANbus interface card •PHU-IF05 DeviceNet interface card •PHU-IF06 Anybus Riser card Notice :PHU-IF02, PHU-IF03, PHU-IF04, PHU-IF05, PHU-IF06 The related information is expected to be released in October 2025

Optional Accessories

•PHU-PC01 Parallel operation cable kit for 2 units x 1 •PHU-PC02 Parallel operation cable kit for 3 units x 1 •PHU-PC03 Parallel operation cable kit for 4 units x 1 •PHU-PC04 Parallel operation cable kit for 5 units x 1 •PHU-PC05 Parallel operation cable kit for 6 units x 1 •PHU-PC06 Parallel operation cable kit for 7 units x 1 •PHU-PC07 Parallel operation cable kit for 8 units x 1 •PHU-PC08 Parallel operation cable kit for 9 units x 1 •PHU-PC09 Parallel operation cable kit for 10 units x 1 •GTL-133 Load cable, 1.5 m, 100 A •GTL-218 Load cable, 1.5 m, 200 A •GTL-219 Load cable, 3 m, 200 A •GTL-220 Load cable, 1.5 m, 300 A •GTL-221 Load cable, 3 m, 300 A •GTL-222 Load cable, 1.5 m, 400 A •GTL-223 Load cable, 3 m, 400 A •GPW-021 Power cord, 10 AWG/4C, 3 m, UL/CSA (PHU-C-5kW, PHU-D-5kW, PHU-D-10kW, PHU-D-15kW) •GPW-022 Power cord, 6 AWG/4C, 3 m, UL/CSA (PHU-C-10kW, PHU-C-15kW) There are a total of 18 models, consisting of 3 power capacities (5 kW/10 kW/15 kW) and 6 voltages (80 V/200 V/500 V/750 V/1000 V/1500 V) to meet all customer needs.
