Product Introduction

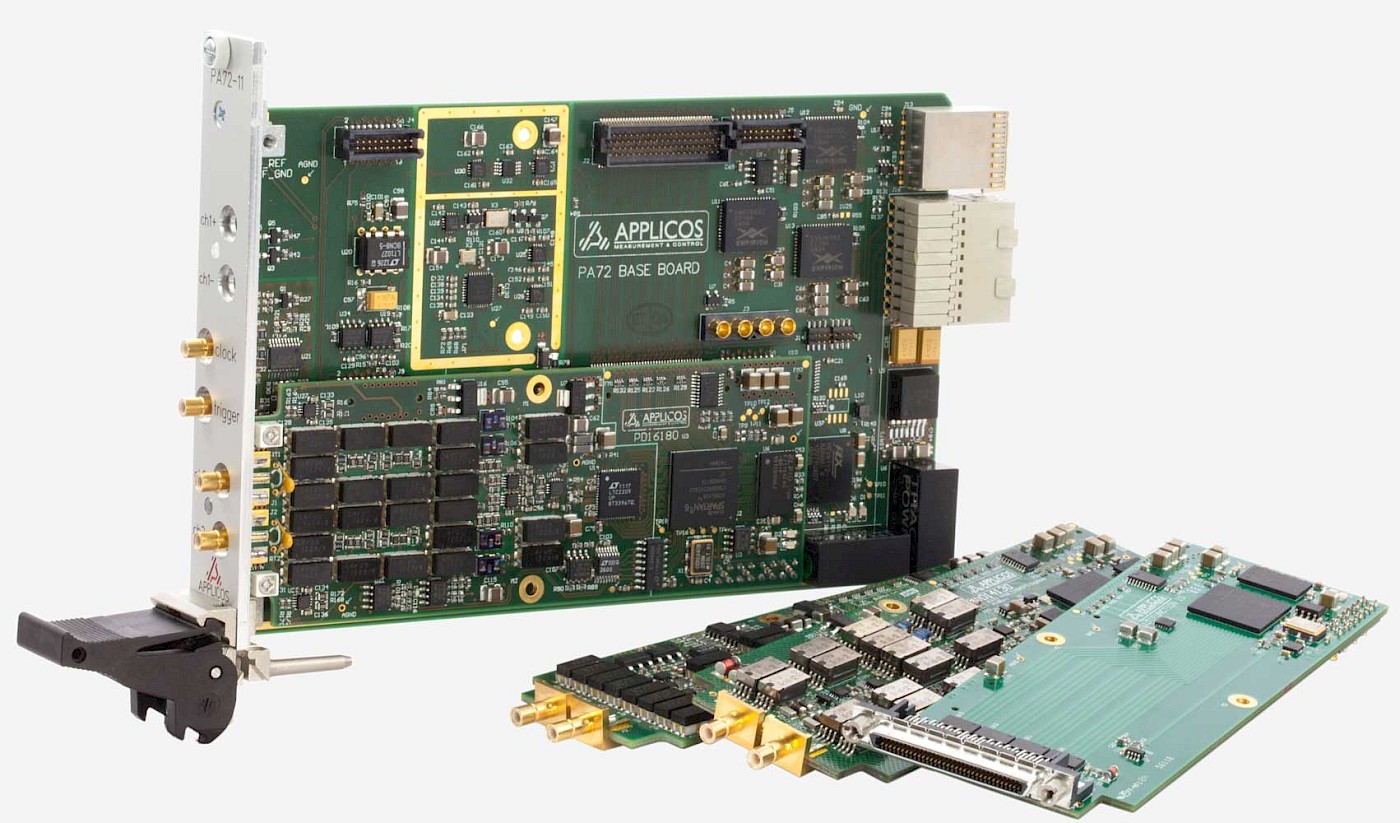

The PA72DIOS6016 is a multifunctional digital design core. The FPGA allows for implementing many different custom applications. The connector has 64 Input/Output pins which can be assigned as TTL I/O or as differential inputs. 128 MByte of DDR2 memory is available to the FPGA, and an onboard EEPROM allows for storing values in non-volatile memory. The I/O bank voltage can be FPGA-selected between 2.5 and 3.3 Volt.
Technical Specifications
| FPGA |
Xilinx Spartan6 XC6SLX16 |
| Logic cells |
14579 |
| CLB Flip-Flops |
18224 |
| Front connector |
VHDCI SCSI-5 |
| Max. TTL/LVCMOS I/Os |
32 |
| Max. differential inputs |
32 |
| Max. differential outputs |
10 |
| I/O voltages |
2.5V and 3.3V |
| I/O configurations |
LVTTL, LVCMOS, PCI, SSTL, (B)LVDS*, LVPECL*, and more. |
| DDR Memory size |
1Gbit |
| DDR Memory frequency |
800MHz |
| Total block RAM |
576kBit |
| Block RAM max. frequency |
320MHz |
