Product Introduction

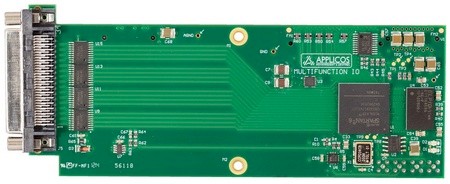

The PA72DIOS6100 is the larger equivalent of the PA72DIOS6016. It features a larger FPGA, and also allows differential output signals. The FPGA allows for implementing many different custom applications. The connector has 64 Input/Output pins which can be assigned as TTL or as differential pairs. 128 MByte of DDR2 memory is available to the FPGA, and an onboard EEPROM allows for storing values in non-volatile memory. The I/O bank voltage can be FPGA-selected between 1.2, 1.8, 2.5 and 3.3 Volt, allowing a wide range of electrical standards.

Technical Specifications

FPGA	Xilinx Spartan6 XC6SLX100
Logic cells	101261
CLB Flip-Flops	126576
Front connector	VHDCI SCSI-5
Max. TTL/LVCMOS I/Os	32
Max. differential I/Os	32
I/O voltages	1.2V, 1.8V, 2.5V and 3.3V
I/O configurations	LVTTL, LVCMOS, PCI, SSTL, (B)LVDS, LVPECL, and more.
DDR Memory size	1Gbit
DDR Memory frequency	800MHz
Total block RAM	4824kBit
Block RAM max. frequency	320MHz
