Product Introduction

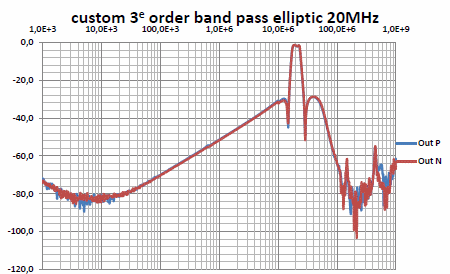

The PA72BPF daughter board is an additional filter board. It typically contains two selectable differential 3rd order elliptic band pass filters. These filter modules are tailored by Applicos to the customers’ requirements. The filters can be used to filter the output signal of the generator daughter boards to achieve an even better distortion and noise suppression.

Technical Specifications

Standard values	10 MHz, 20MHz, 35 MHz, 42.5 MHz
Pass band	5 MHz*
Pass band attenuation	1 - 3 dB*
Rejection	30dB minimum*

* Specifications below are typical/indicative values only!
