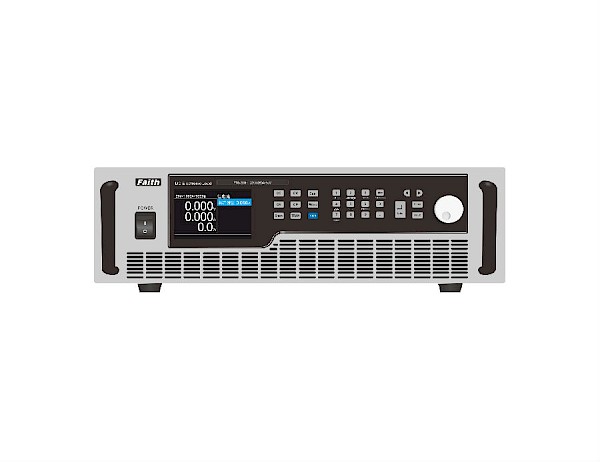

FT Series Ultra low voltage high current programmable DC electronic load (0.3V, 1500A)
Voltage range: 40V;
Current range: 400A，600A，1200A,1500A;
Power range: 2600W，4000W，8000W;

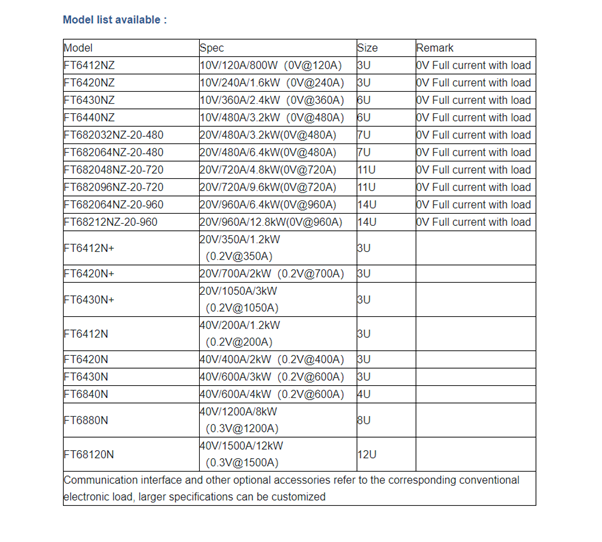

The Ultra-low voltage high current programmable DC electronic load is a highly reliable and high-performance electronic load product developed for low-voltage and high current test scenarios such as CPU power supply testing. For different current levels, this product includes two series: FT6400N and FT6800N. The voltage range is 0 ~ 40V, the current of a single unit can reach up to 1200A, and the low-voltage load capacity can reach up to 0.3V@1500A.
This series of products with high precision, high cost performance, is a good choice for your test.
Feature :
■Low-voltage load capacity can reach up to 0.2V@1200A;
■Support external analog programming control;
■Battery capacity and battery internal resistance test;
■CC, CV, CR, CP test modes;
■Short circuit simulating;
■Support far-end/near-end measurement switching;
■Parallel up to 10 identical units through master-slave mode (FT6800N only);
■TFT color LCD screen;
■20KHz dynamic test, rising/falling slew rate adjustable;
■ Sequence test;
■OVP, OCP, OTP, OPP, reverse connection protection etc;
■Communication ports: RS232, LAN, optional GPIB;
Application Areas :
1. Fuel cell testing;
2. Forced battery discharge test;
3. Power supply system test of CPU and power devices;
4. Other low-voltage and high-current test scenarios.
Ultra low voltage full current load :
Ultra-low voltage high-current DC electronic load has ultra-low internal resistance characteristics, the minimum internal resistance < 0.2mΩ. FT6430N+ can achieve 1050A current pull load at 0.2V input, and the power is only 3kW. Compared with the ordinary electronic load, the power is only 1/18 under the same low voltage load condition. Smaller test power can provide larger test current, which can greatly reduce test cost in fuel cell membrane electrode, monolithic cell and short stack test.
Static Function :
The FT6200A series electronic load has four test modes: constant current, constant voltage, constant resistance and constant power, which can meet comprehensive test requirements.
Sequence test
The electronic load provides sequence test feature. The user can edit a load test sequence to simulate various changes of the load input, which is suitable for various complex load tests.
Battery capacity test
The electronic load provides battery capacity test function, it uses the constant current (CC) mode for battery discharging process. During the process, the load will automatically records the voltage, current, time and AH.
