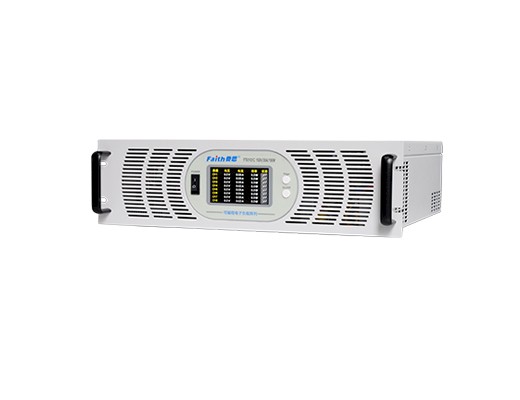

FT6100 series multi-channel DC electronic load (45W*12CH/150W*12CH/300W*6CH)

Voltage range: 60V, 500V; Current range: 3A ~ 40A; Power range: 45W*12CH/150W*12CH/300W*6CH The FT6100 series is a multi-channel programmable DC electronic load product developed with high reliability and integration. The products are tailored for integrated applications and are extremely cost-effective. It can replace low-power single electronic loads in most integrated applications, which can save a lot of space for system construction and greatly save costs. FT6100 is specially designed for embedded integrated application development, standard 19-inch chassis size, equipped with RS485, LAN communication interface, and adopts Modbus-RTU. It supports the secondary development of most software platforms such as Visual C++, C#, Delphi, Visual Basic, Labview, etc. Users can customize the application software according to their needs.

Feature

✦ Compact, cost effective, occupies little space; ✦ Modular design, 3U/12CH/150W, only 1/4 of conventional load size; ✦ Electric isolated channels, individual control or parallel; ✦ Each channel power range: 45W/150W/300W/600W, Voltage range: 60V/500V; ✦ CC、CV、CR、CP test modes; ✦ Dynamic test, programmable sequence function; ✦ OVP, OCP, OPP, OTP; ✦ With RS485、LAN ports, support standard MODBUS protocol; ✦ Complete DLLs, facilitates secondary development; ✦ Standard PC software; ✦ High reliability, long mean time between failures; ✦ LCD displays each channel's voltage, current, power and status; ✦ 19-inch wide, easy installing; ✦ Air cooling.
