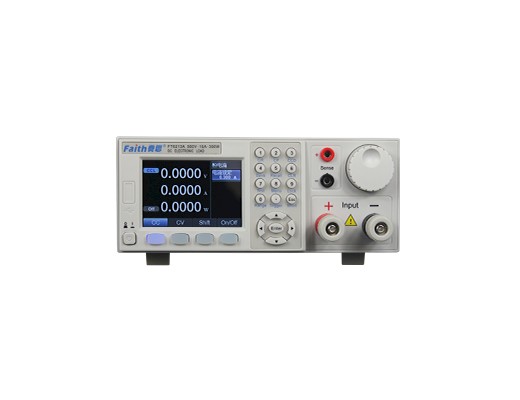

FT6200A series low-power DC electronic load (150W/300W)

Voltage range: 150V, 500V; Current range: 15A, 30A; Power range: 150W, 300W; FT6200A series low-power programmable DC electronic load is a desktop electronic load with super practicality and universality. It can be widely used in the research and development, production and quality inspection of switching power supplies, adapters, LED drivers, 3C batteries, super capacitors, power electronic devices, solar battery components, chargers and other products. The product is equipped with TFT screen and Chinese/English menu interface, standard RS232 and supports SCPI. Feature ✦ CC, CV, CR, CP; ✦ Adjustable slew rate, Von and Voff are settable; ✦ Up to 50kHz dynamic test; ✦ Min resolution: current 0.05mA，voltage 0.5mV; ✦ Current accuracy (0.05%+0.05%FS), Voltage accuracy (0.025%+0.025%FS); ✦ Fast NG/GO detection; ✦ OPP, OCP, OVP, OTP; ✦ Programmable load sequence; ✦ Automatic test; ✦ Tests: OCP, OPP, LED simulation, load effect, battery internal resistance, battery discharge; ✦ Short circuit simulating； ✦ Quick call, call test parameter with one key; ✦ Current monitoring port and digital I/O port； ✦ V-SENSE terminal in front panel, remote sensing; ✦ TFT color LCD display, Chinese/English menu; ✦ Standard RS232, easy remote control; ✦ Support SCPI,facilitates test platform; ✦ Can work with PC software; ✦ Air cooling. Model/Specification/Size FT6211A :150V/30A/150W 1/2 2U FT6212A: 150V/30A/300W 1/2 2U FT6213A: 500V/15A/300W 1/2 2U
