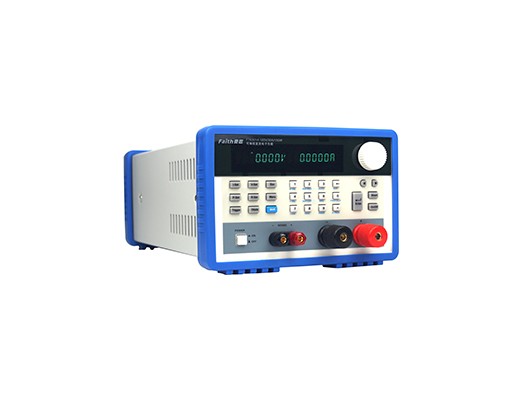

FT6300A series medium and low-power DC electronic load (150W-1800W)

Voltage range: 120V/500V; Current range: 0 ~ 240A; Power range: 150W/300W/600W/900W/1350W/1800W; The FT6300 series of electronic loads have a variety of models, with power ranging from 150W to 1800W and current up to 240A. It is mainly used in the testing of various chargers/adapters, switching power supplies, LED drivers, power batteries, telecom power supplies, fuses, solar cells and their components. The FT6300 series provides basic functions such as CC, CV, CR and CP; it has dynamic and sequence test functions to simulate various load changes; the intelligent automatic test function can greatly improve the test efficiency of the production line. The FT6300 series come with standard RS232 interface, support SCPI commands. Feature ✦ 20kHz dynamic test, adjustable slew rate (FT6309A-FT6319A); ✦ CC, CV, CR, CP; ✦ Quick call, call test functions with one key; ✦ Sequence test, simulate complex load changes; ✦ Intelligent auto test function, automatic PASS/FAIL check; ✦ Battery internal resistance and battery capacity test; ✦ Remote sensing to compensate voltage drop; ✦ OCP test, automatically find the OCP point; ✦ high-definition, high-brightness VFD display; ✦ Keyboard and knob setting, easy to operate; ✦ OVP, OCP, OPP, OTP and reverse connection protection; ✦ Support SCPI commands; ✦ Standard RS232 interface facilitates remote control.
