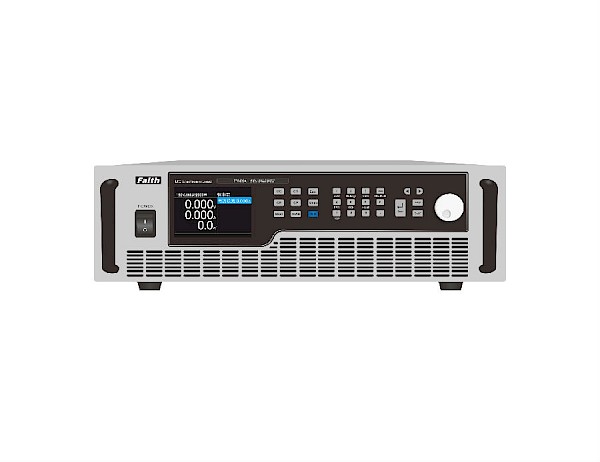

FT6400A series medium-power DC electronic load (900W-6000W)
Voltage range: 120V/150V/500V/600V/1000V;
Current range: 30A ~ 480A;
Power range: 900W/1200W/1350W/1800W/2000W/3000W/6000W;
The FT6400A series has modular design, with strong adaptability, high reliability and high maintainability. Mainly used in power electronics testing fields such as power batteries, medium and high power DC power supplies, DC generators, etc. The FT6400A electronic load not only provides OCP, OVP, OPP, OTP, RVP but also provides Von and Voff functions and programmable protection functions for the device under test. These features can greatly improve the reliability of the product, and it is a reliable product for engineering test and automatic test system integration.
Feature
✦ Battery capacity and internal resistance test;
✦ Short circuit simulating;
✦ OCP test;
✦ Support analog programming;
✦ 20kHz dynamic test, adjustable rising/falling slew rate;
✦ Time measurement, (Vpk+/-) measurement;
✦ Sequence test support CC, CV, CP, CR, single step time up to 9999 seconds;
✦ OVP, OCP, OPP, OTP, voltage reverse protections etc.;
✦ Support SCPI;
✦ Standard PC software;
✦ Air cooling;
✦ With RS232、LAN communication ports.
