FT6800 series high-power DC electronic load (2.6kW-72kW)
Voltage: 40V, 120V, 500V, 800V, 1000V, 1200V
FT6800 series high-power programmable DC electronic load is a multi-functional, large-capacity electronic load product designed with the principle of high reliability and high stability. FT6800 series has the advantages of fast transient response, high precision (0.05% accuracy), capability of low voltage operation at full scale current, they are widely used in testing and eva1uating a variety of DC sources such as DC-DC converters, power batteries, solar cell array, BMS, charging piles, charging pile modules, vehicle On Board chargers (OBC), high-power switching power supplies, telecom power supply, vehicle power supply, super capacitor, etc.

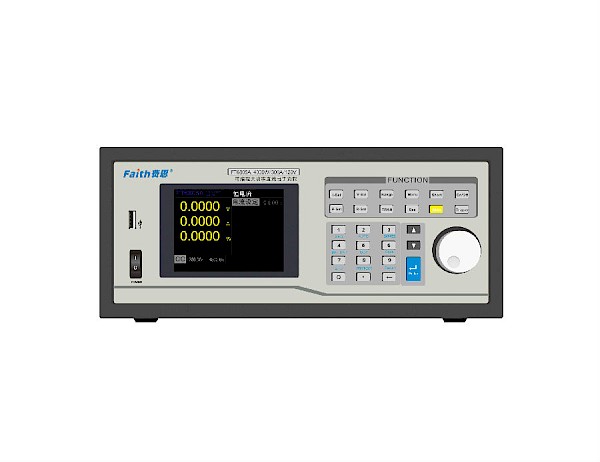

For bench top applications, this series provides an intuitive user interface with full keypad and rotary knob. System integrators benefit from the standard USB (virtual SERIAL), RS232 and LAN interfaces supporting both SCPI commands and ModBus RTU protocol. The optional Windows application software allows users to control the electronic load, execute various tests such as sequence test, automatic test, dynamic test, static test, OCP/OVP/OPP test, battery discharging test etc...
Feature :
■ Voltage range: 40 V, 120 V, 500 V, 800 V, 1000 V, 1200 V;
■Current range: 2400A max. per unit;

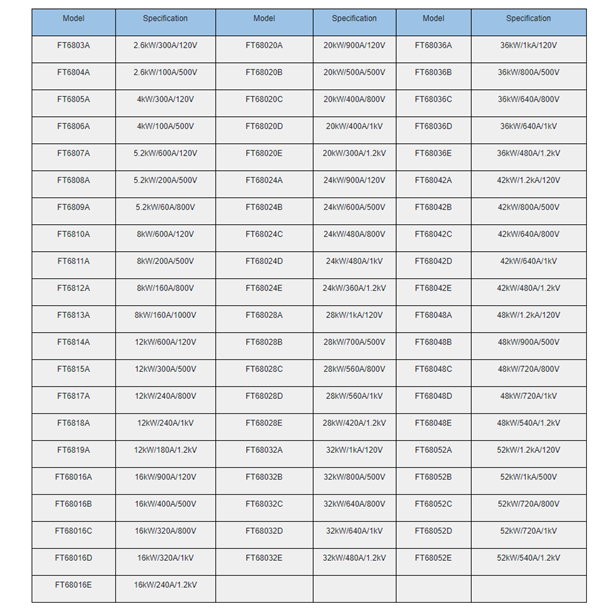

■Rated power: 2.6kW, 4kW, 5.2kW, 8kW, 12kW, 16kW, 20kW, 24kW, 28kW, 32kW, 36kW, 42kW, 48kW, 52kW, max. 300kW (parallel);
■CC, CV, CR, CP, CV+CC, CR+CC modes;
■Dynamic frequency up to 20kHz;
■Ultra high precision V & I measurement;
■Store and recall up to 20 groups setups;
■Flexible triggering options via front panel, external input, or bus (used for transient, sequence, automatic test);
■Adjustable CV loop speed test, match different power supplies;
■Programmable sequence , automatic test;
■OCP test, super capacitor test, battery test;
■Short circuit simulation;
■Voltage-on (Von) & voltage-off (Voff) latch operation and timer unloading;
■Analog interfaces provides current programming and voltage/current monitoring;
■±OVP, ±OCP, ±OPP, OTP, ±current limit;
■Standard RS232, USB (serial), LAN, optional GPIB interface;
■SCPI and ModBus RTU protocol;
Application Areas :
Power battery, lead-acid battery, fuel cell discharge test
BMS and battery protection test
DC charging pile, charging module, vehicle charging machine, A/D power converter and other power electronic power devices test
Test high-power switching power supply, UPS power supply, communication power supply and server power supply
Solar battery array, industrial motor virtual load test
CC, CV, CR, CP, CV+CC, CR+CC
In addition to the basic test modes of CC, CV, CR, CP, the FT6800 series also has CV+CC and CR+CC compound mode to meet comprehensive test requirements. Users can set the current limit value according to their own test requirements to avoid overcurrent damage to the device under test.
Sequence
Sequence test is available in CC, CV, CR, CP mode. The user can edit a load test sequence. FT6800 series supports 20 sequence files, and each file with 50 steps. Single step time can be set to 0.1ms ~ 90,000s. Sequence files can be linked. Users can also set the number of cycles and switching mode of the sequence.
Battery test
The The FT6800 series load provides battery test functions, including battery internal resistance test and battery capacity test.
Battery internal resistance test
It uses DC discharge method (DCR).
Battery capacity test
It uses constant current for discharging.
During the process, the discharge time and AH/WH will be recorded.
Testing of super capacitor
OCP test
The FT6800 series provides OCP test within itself.
Users can utilize the PC software to perform OCP/OVP/OPP test so as to obtain V/I curve, and test the stability of the protection point.
External analog programming
Other devices can continuously control the load through an external voltage signal (DC or AC). The external voltage signal of 0～10V corresponds to 0～100% full-scale load current. This function is also suitable for various complex load waveforms test.
