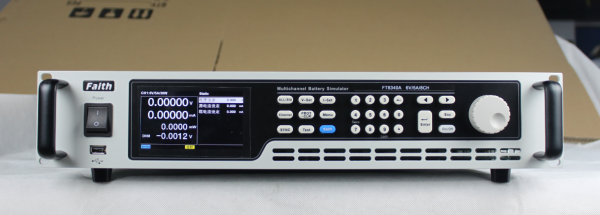

FT8340 multi-channel Bipolar DC Power Supply/Battery Simulator

The FT8340 multi-channel Bipolar battery cell simulator can be used as a power source to output electric energy at CV or CC mode, or as an electronic load to consume electric energy at CV or CC mode. A single FT8340 unit has 8 channels, channels are isolated and support series / parallel operation. The standard host PC software is easy to operate, supports single-channel and multi-channel programming, as well as multi-process programming.

Feature :

■Voltage range: 0 ~ 6V/0 ~ 15V; ■Current range: ±1A/±2A/±3A/±5A; ■Four-wire wiring, high output voltage accuracy; ■Voltage temperature drift coefficient is less than 25ppm/℃; ■ Seamless switch between source and load, powerful battery characteristics simulation function; ■Unique fault simulation function, analog battery offline, short circuit, reverse connection, etc.; ■Isolation between channels, multiple channels can be used in series; ■Professional testing software, supporting data reporting and data analysis; ■RS485 and dual Ethernet control interface; ■Standard 19-inch 2U chassis design for easy rack installation.

Application Area :

1. BMS (battery management system) test; 2. CMS (over-capacity Management system) test; 3. Testing of consumer electronics such as headphones, mobile phones and tablets 4. Production and testing of power tools; 5. Power supply test of other electronic products.

Static power consumption test :

FT8340 has high precision voltage and current measurement. Current accuracy up to 1μA. FT8340 is used to power the tested product, which can directly test the static power consumption of the tested product in standby state and screen out unqualified products.

Fault simulation function

A single machine has up to 8 independent output simulator channels, each channel has built-in positive/negative short circuit, positive/negative circuit breaker, polarity reverse connection and other functions. Directly controlled by PC software, save battery fault external matrix switch components, for clients to save the space and valuable investment.

Application Areas:

1. BMS (battery management system) test; 2. CMS (Super Capacity management System) test; 3. Testing of consumer electronics such as headphones, mobile phones and tablets 4. Production test of power tools; 5. Power supply test of other electronic products Model Specification Remark FT8340A FT8340 Series special chassis Maximum 2 battery cell simulating modules can be installed in one battery simulator. different models cannot be mixed in the same host. FT83404A-6-1 battery cell simulating module 6V/1A/6W，4 chanel FT83404A-6-3 battery cell simulating module 6V/3A/18W，4 channel FT83404A-6-5 battery cell simulating module 6 V/5A/30W，4 channel FT83404A-15-1 battery cell simulating module 15V/1A/15W，4 channel FT83404A-30-10 battery cell simulating module 30V/10/150W，2 channel
