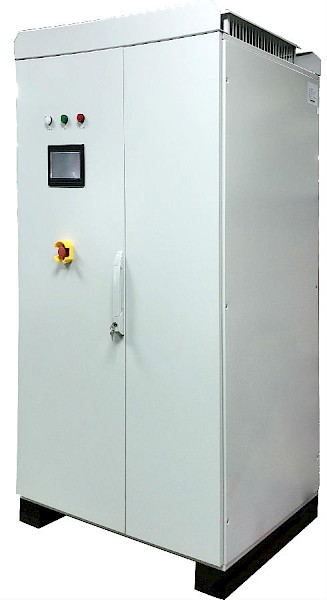

FTD Bidirectional Programmable DC Power Supply (24V~800V, 10kW~500kW)

The bidirectional programmable DC power supply of FTD series combines two devices in one: a power supply (source) and an electronic load (sink) with energy recovery capability. Based on these two functions, FTD offers the functionality of two-quadrant operation. The regenerative capability enables the absorbed energy to be put back onto the power grid cleanly, saving costs of electricity and cooling, while not interfering with the grid. FTD series voltage ranges from 24V ~ 800V, output power ranges from 10kW ~ 500kW. FTD is the combination of high reliability, high efficiency, high safety and high accuracy measurement. Overall, FTD is a bidirectional, regenerative power system with excellent performance, extensively used in the testing of power battery pack, new energy vehicle motor, electric control test, power battery charge and discharge test, power electronics test and other fieldsetc.

Feature :

■DC voltage range 24V ~ 800V, suitable for various kinds of applications; ■Bi-directional: power supply and electronic load in one; ■ The circuit structure adopts three-phase PWM rectifier inverter + DC/DC bidirectional conversion two-stage circuit, which can realize a wide range of DC voltage output, high control accuracy, and fast dynamic response; ■High regenerative efficiency up to 94%; ■High dynamic characteristics, 10%~90% loading output voltage response time≤5ms, +90%~-90% switching time≤10ms; ■Power factor＞0.99; ■Built-in AC isolation transformer + LC AC and DC filter, electrical isolation between input and output; ■ Voltage/Current/Power setting and measurement at DC terminal; ■With power battery simulation function, the internal resistance of the simulated battery can be set freely according to the user's working conditions; ■Standard LAN, optional RS485 ports; ■TFT Touch screen operation.

Application Areas :

FTD SERIES BIDIRECTIONAL DC POWER SUPPLY CAN BE USED AS A high precision and fast response power supply, as well as a rich function of regenerative DC electronic load, used for fuel cell stack, fuel cell engine system, power battery pack, ULtracapACitors, DC power supply, charger discharge test.

Model list available :

Model Voltage Range Rated Power(kW) FTD10 24-800V 10 FTD15 24-800V 15 FTD20 24-800V 20 FTD30 24-800V 30 FTD40 24-800V 40 FTD50 24-800V 50 FTD60 24-800V 60 FTD80 24-800V 80 FTD100 24-800V 100 FTD100T 24-800V 100x2 channel FTD120 24-800V 120 FTD150 24-800V 150 FTD150T 24-800V 150x2 channel FTD200 24-800V 200 FTD200T 24-800V 200x2 channel FTD250 24-800V 250 FTD250T 24-800V 250x2 channel FTD300 24-800V 300 FTD350 24-800V 350 FTD400 24-800V 400 FTD500 24-800V 500
