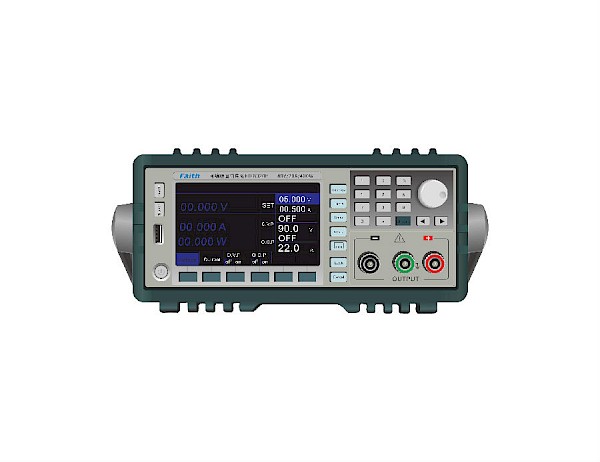

FTL-P series wide range digital-control DC power supply (400W/850W/1500W)

FTL-P series wide range and low power programmable variable Bench DC power supply is developed by Faith after years of experience in the design and development of DC switching power supply, which has super practicability and versatility. Products using active power factor correction circuit, with high power density, high power efficiency, high power factor.

Feature

: ❏ Store / recall 100 groups of data such as voltage, current, timing execution can achieve simple automatic test purposes ❏ High accuracy and high resolution 1mV/1mA; ❏ Timing output function, supports unlimited / specified cycle times of output; ❏ Remote sense voltage compensation; ❏ One-key lock, prevent misoperation; ❏ Low resistance measurement, and display load resistance value,; ❏ Battery charging function; ❏ Support U disk storage; ❏ OCP, OVP, OPP, OTP, reverse polarity protection, etc.; ❏ Standard external trigger interface; ❏ Standard RS232, RS485 interface, optional LAN; ❏ Support SCPI, MODBUS-RTU protocol.

Protection function

In order to be suitable for complex application environment and maintain high performance, we are constantly pursuing robust design and excellent stability. Perfect protection circuit, with overload, polarity reverse protection, over voltage protection, over current protection, over temperature protection function. With voltage and current protection function, the DC power supply can be automatically switched between CC/CV according to the load condition,so as to improve the DC power supply to suit the different loads. An efficient heat dissipation system will automatically adjust the speed of the heat dissipation fan according to the system temperature, which reduces the system noise and improves the system power density.

Man-machine interface and operation

The convenient and fast operation interface of FTL-P series conforms to the principle of ergonomics, it provides two display modes: ordinary display mode and waveform display mode. Users can choose the display mode whic is suitable for observation according to their needs. The product has constant current and constant voltage automatic switching function based on load situation . DC power supply support SCPI, ModBUS-RTU protocol programmable instrument standard instruction, equipped with RS232, RS485 interface, combined with other programmable instruments together to form ATE system, suitable for PLC control, automation control. this product is calibrated by using full electronic modes without removing the case.

Model list for buying:

Model Specification Voltage resolution Current resolution Redundant range FTL8020P 80V/20A/400W 1mV 1mA 80.5V/20.5A/400W FTL35110P 35V/110A/850W 1mV 10mA 35V/111A/850W FTL35110P-015 35V/110A/1500W 1mV 10mA 35V/111A/1500W FTL60005P 600V/5A/850W 10mV 1mA 605V/5.5A/850W FTL60005P-015 600V/5A/1500W 10mV 1mA 605V/5.5A/1500W
