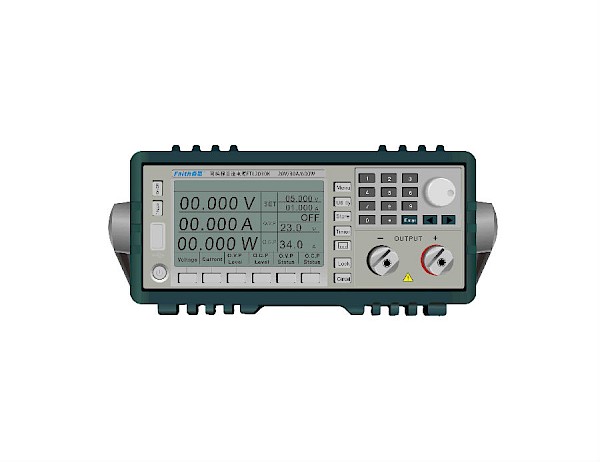

FTL series high precision DC power supply (90W-1500W)
The FTL series is a high precision DC linear power supply with high performance, multi-function, medium and small power features. The product is stable and mature, and has comprehensive protection functions such as reverse polarity, overvoltage, overcurrent, overload and overtemperature, which can keep the power supply and load safe in unstable environments. FTL has a regulation rate of < 0.01%, ripple and noise of < 1mVrms and fine transient performance, and is suitable for application environments like current surges. The FTL series DC power supply is not only suitable for high-grade laboratory, but also for high-performance test systems.
FTL series is a high performance, multi-function, medium and small power programmable DC linear power supply. The product is stable and mature, and has comprehensive protection functions such as overload, polarity reverse connection, overvoltage, overcurrent and overtemperature, which can keep the power supply and load safe under unstable environment. FTL HAS < 0.01% adjustment rate, < 1mVrms ripple and noise and good transient performance, suitable for applications like current surges. The FTL series is suitable for both high index laboratory use and high performance test system use.
Features
■ < 0.01% low regulation rate;
■ Ultra high resolution and accuracy of 1mV/1mA;
■ Low ripple and low noise;
■ OCP, OVP, OPP, OTP, reverse polarity protection, etc.;
■ CV, CC output modes, switched automatically according to the load condition;
■ One-key lock function, prevent misoperation;
■ Output ON/OFF control;
■ Store/recall 100 groups of V/I data;
■ Remote sense voltage compensation;
■ Support battery charging;
■ Dual range (some models);
■ Standard RS232, support SCPI;
■ Optional analog control interface, RS485, LAN ports, optional MODBUS-RTU protocol.
Model list for ordering :
Model Specification Voltage resolution Current resolution Redundant output range
FTL3003 30V/3A/90W 1mV 0.1mA 32V/3.2A/90W
FTL3005 30V/5A/150W 1mV 0.1mA 32V/5.5A/150W
FTL3603 36V/3A/108W 1mV 0.1mA 40V/3.2A/108W
FTL3605 36V/5A/180W 1mV 0.1mA 40V/5.5A/180W
FTL6003 60V/3A/180W 1mV 0.1mA 64V/3.2A/180W
FTL6005 60V/5A/300W 1mV 0.1mA 64V/5.5A/300W
FTL7503 75V/3A/225W 1mV 0.1mA 80V/3.2A/225W
FTL7505 75V/5A/375W 1mV 0.1mA 80V/5.5A/375W
FTL3010 30V/10A/300W 1mV 1mA 32V/11A/300W
FTL12001 120V/1A/120W 10mV 0.1mA 128V/1.1A/120W
FTL12002 120V/2A/240W 10mV 0.1mA 128V/2.2A/240W
FTL150015 150V/1.5A/225W 10mV 0.1mA 160V/1.6A/225W
FTL1820 18V/20A/360W 1mV 1mA 19V/21A/360W
FTL12003 120V/3A/360W 10mV 0.1mA 128V/3.2A/360W
FTL300012 300V/1.2A/360W 10mV 0.1mA 320V/1.2A/360W
FTL500007 500V/0.7A/350W 10mV 0.1mA 500V/0.7A/350W
FTL2030K 20V/30A/600W 1mV 1mA 20.5V/30.5A/600W
FTL3020K 30V/20A/ 600W 1mV 1mA 31V/21A/ 600W
FTL6010K 60V/10A/ 600W 1mV 1mA 60.5V/10.5A/600W
FTL80075K 80V/7.5A/600W1mV 1mA 80.5V/8A/600W
FTL1560K 15V/60A/900W 1mV 1mA 15.5V/60.5A/900W
FTL2045K 20V/45A/900W 1mV 1mA 20.5V/45.5A/900W
FTL3030K 30V/30A/900W 1mV 1mA 31V/31A/900W
FTL3625K 36V/25A/900W 1mV 1mA 36.5V/25.5A/900W
FTL4520K 45V/20A/900W 1mV 1mA 45.5V/20.5A/900W
FTL6015K 60V/15A/900W 1mV 1mA 60.5V/15.5A/900W
FTL8011K 80V/11A/900W 1mV 1mA 80.5V/11.5 A/900W
FTL120075K 120V/7.5A/900W10mV 1mA 121V/7.6A/900W
FTL15006K 150V/6A/900W 10mV 1mA 151V/6.1A/900W
FTL8020P 80V/20A/400W 1mV 1mA 80.5V/20.5A/400W
FTL35110P 35V/110A/850W1mV 10mA 35V/111A/850W
FTL35110P-015 35V/110A/1500W1mV 10mA 35V/111A/1500W
FTL60005P 600V/5A/850W 10mV 1mA 605V/5.5A/850W
FTL60005P-015 600V/5A/1500W 10mV 1mA 605V/5.5A/1500W
