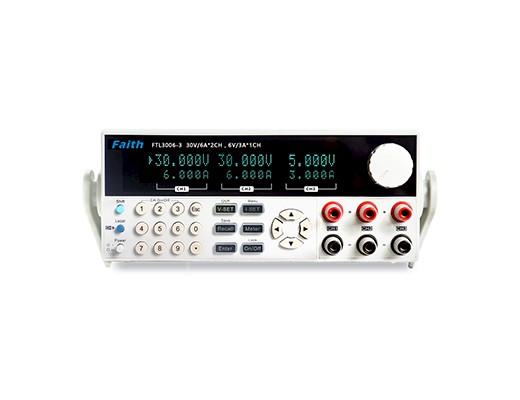

FTL triple channel DC power supply

FTL tripple-output series Bench linear DC power supplies provide three individually controllable output channels, which can be operated in series, parallel or tracking mode. The 2U half-rack device delivers up to 540 W of power with low ripple and noise, or 180 W per channel, and offers functionalities such as remote sense, output timer, channel max voltage, overvoltage and overtemperature protections etc.. The instrument comes standard with RS232, USB ports, supports SCPI programming commands. FTL multichannel programmable Bench linear DC power supply provides high resolution, high accuracy and high stability. It also provides over voltage and over heat protection. It provides series and parallel operation modes with resolution up to 1mV/1mA.

Feature

■ 2U half-rack instrument delivers up to 540 W of power with low ripple and noise, or 180 W per channel; ■ Linear type high resolution, high precision (1mV/1mA), high stability DC power supply; ■ Capability to do series or parallel, or tracking among the channels; ■ Monitor the voltage and current output in real time for all channels; ■ All channels are individually controllable; ■ Save and recall up to 40 groups of V/I setups; ■ Voltage remote sense compensation; ■ Output timer (0.1 ~ 3600 seconds); ■ Overvoltage, overtemperature protections; ■ Standard RS232, USB, support SCPI commands; ■ Intelligent fan control, reduces noise. Size : FTL3003-3/FTL3006-3/FTL6003-3 Bare machine size: 255(W)*110(H)*380(D)mm Net weight: 8.5 kg FTL3003-5X/3005-5X/6003-5X/3010-4X Bare machine size: 480(W)*142(H)*370(D)mm Net weight: 24.3 kg
