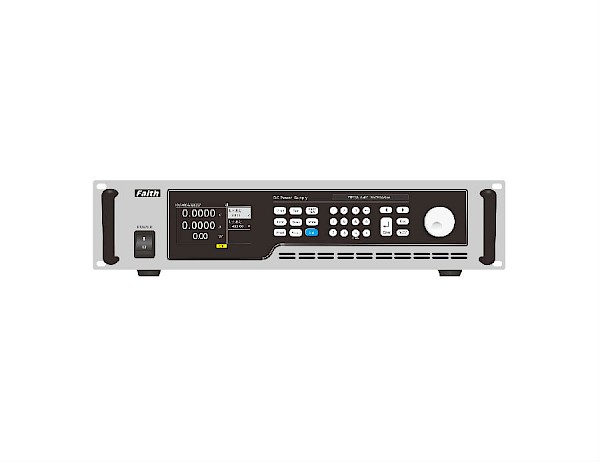

FTP series programmable DC power supply (2KW/3.2KW/6.5KW)

FTP series wide range Benchtop computer-controlled DC regulated power supply is a high performance DC power supply developed by Faith Technology. It has the advantages of wide range output, large current, low ripple noise, fast transient response, high resolution, high precision, voltage and current slope can be set, etc. FTP series product line is rich, including 36 different models, 3 kinds of power levels, voltage range from 40V to 1500V, is the best choice for ATE system integration, laboratory testing, vehicle equipment testing, superconducting testing, motor testing, battery charging simulation, voltage and current sensor calibration, laser testing and power supply, electronic product life cycle testing and other applications. Voltage: 0 ~ 1500 v Power: 2000 w / 3200 w / 6500 w FTP series wide range DC power supply is a high performance DC power supply developed by Faith Technology. It has the advantages of wide range output, large current, low ripple noise, fast transient response, high resolution, high precision, voltage and current slope can be set, etc. FTP series product line is rich, including 36 different models, 3 kinds of power levels, voltage range from 40V to 1500V, is the best choice for ATE system integration, laboratory testing, vehicle equipment testing, superconducting testing, motor testing, battery charging simulation, voltage and current sensor calibration, laser testing and power supply, electronic product life cycle testing and other applications.

Feature

: ■ Output voltages: 0 V...40 V up to 0 V... 1500 V; ■ Output current: 0 A...3.5 A up to 0 A... 240 A; ■ Output power: 2 / 3.2 / 6.5 kW; ■ CV, CC, CP operation modes; ■ Easy Master-Slave parallel or serial; ■ Precision V & I measurement; ■ High speed programming; ■ 1ms typical transient response; ■ Programmable sequence; ■ Voltage & current slew rate control; ■ CV / CC priority; ■ Foldback protection; ■ Wide operating region for output; ■ Automotive waveform test feature, compatible with ISO16750-2, VW80000 standards *1 ■ Remote sense compensation; ■ Optional analog programming & monitoring interface; ■ ±OVP, ±OCP, ±OPP, OTP, ±LVP; ■ Voltage limit, current limit; ■ Standard LAN, USB (serial), optional GPIB interface; ■ SCPI and ModBus RTU protocol; ■ TFT color LCD display.

Application field

•Flexible application of multiple specifications in power electronics laboratory; •Fuel cell, power battery, lead battery, supercapacitor test; •Simulation of power supply environment for on-board, airborne and shipboard electronic equipment; •DC charger, charging pile design and test system integration; •server power supply, UPS, inverter design and test; •Design and test for solar, wind and energy storage; • Power supply and design testing for UAV, laser and sensor fields.

Optional accessories

•GPIB Interface •Composite Signal Port •Anti Backflow Current Automobile waveform test
