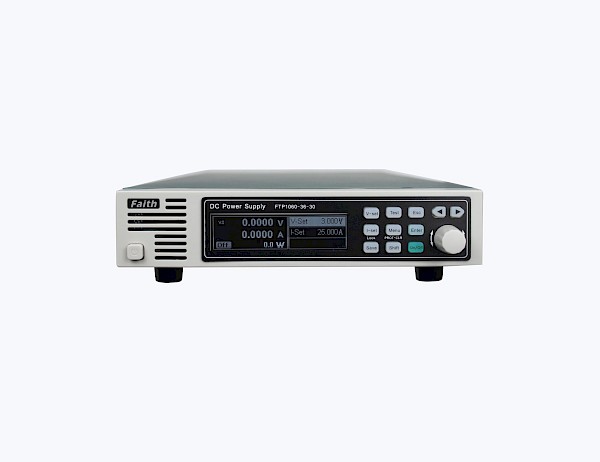

FTP1000 Series high precision power programmable DC power supply (1U, 600W/900W)

FTP1000 series programmable DC power supply is a small size, high performance, high power density DC power supply.1U half 19 inch design, single machine is more lightweight, more convenient cabinet integration. Maximum output power 900W, can be used in laboratory testing, system integration, large-scale production line testing and other fields. FTP1000 series programmable DC power supply is a small size, high performance, high power density DC power supply.1U half 19 inch design, single machine is more lightweight, more convenient cabinet integration. Maximum output power 900W, can be used in laboratory testing, system integration, large-scale production line testing and other fields.

Features

： ■ Single power output range: 600W/900W; ■ Voltage output range: 0 ~ 600V; ■ Single current output range: 0 ~ 60A; ■ Small size, 1U/ half 19 inches; ■ High input power factor, low harmonic; ■ Sequence and waveform editing function; ■ With battery charging function; ■ Over-voltage protection, over-current protection, over-power protection, over-temperature protection and other comprehensive protection functions; ■ Support output time setting, can control and record the output time; ■ Support voltage remote compensation; ■ OLED display, wide viewing Angle, high brightness; ■ Standard RS232 and LAN, optional RS485; ■ Support standard SCPI and Modbus-RTU communication protocols.
