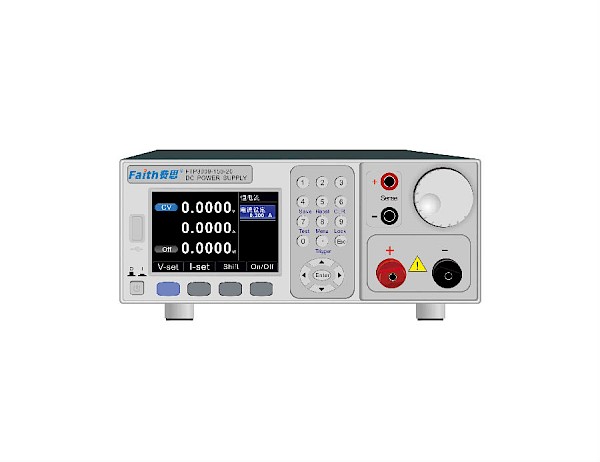

FTP3000 series wide range programmable DC power supply (900W/1500W)

FTP3000 series programmable regulated DC power supply is a universal bench top power supply, with the features of high power factor, high efficiency, and wide range of output. Its wide range voltage / current output and automatic constant power function can greatly increase the application coverage. Accurate output (voltage: 0.1%+0.1%F.S.; current: 0.1%+0.2%F.S.), fast response (1ms typical) and low ripple noise (Vrms 0.02%F.S. typical) have always been the heritage of Faith Power. These power supplies are well suited for R&D, design verification, production test, and more comprehensive testing in power electronics industry. FTP3000 series low power supply is a high cost performance, super practical, universal power supply. It can be widely used in laboratory test, vehicle equipment test, solar inverter test, DC/DC converter and inverter test, engine start test, battery automatic charging, electronic product life cycle and other test links. The product is equipped with color screen and English menu interface, easy to operate and intuitive, is the common configuration of the desk of power electronics engineers. Voltage: 0 ~ 600V Current: 0 ~ 80A Power: 900W, 1500W

Features

: ■ CV, CC, CP operation modes; ■ High Precision V & I measurement; ■ Quick call, one-click call test parameters ■ 1ms typical transient response; ■ Programmable sequence; ■ Voltage & current slew rate control; ■ CV / CC priority; ■ Foldback protection; ■ Wide operating region for output; ■ Internal resistance simulating; ■ Remote sense compensation; ■ Optional analog programming & monitoring interface; ■ ±OVP, ±OCP, ±OPP, OTP, ±LVP; ■ Voltage limit, current limit; ■ Standard RS232, LAN, optional GPIB and CAN ports; ■ SCPI and ModBus RTU protocol ■ Intelligent fan control to reduce noise ■ SDK development kit, convenient for customers secondary development. FTP3000 series supports voltage/current slew rate setting. The adjustment of the slew rate slows down the voltage (or current) rising and falling speed, which can effectively avoid the damage of the surge current to the device under test. The unit of voltage slew rate is V/s, and the unit of current slew rate is A/s.

Models

: FTP3009-40-80: 80A 900W 40V FTP3015-40-80: 80A 1500W 40V FTP3009-80-40: 40A 900W 80V FTP3015-80-40: 40A 1500W 80V FTP3009-150-20: 20A 900W 150V FTP3015-150-20: 20A 1500W 150V FTP3009-300-10: 10A 900W 300V FTP3015-300-10: 10A 1500W 300V FTP3009-600-5: 5A 900W 600V FTP3015-600-5 : 5A 1500W 600V

Optional Accessories

• Analog Interface • Anti Backflow Current Module •CAN Interface •GPIB Interface
