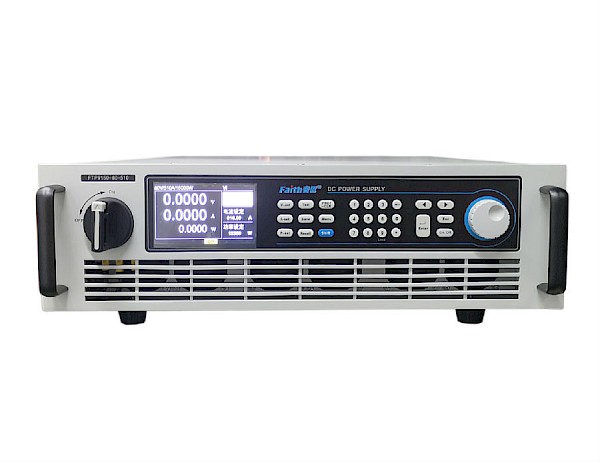

FTP9000 series high-power programmable DC Laboratory power supply (5~180KW)

FTP9000 series high-power programmable DC power supply has the characteristics of high power density, high power factor, high efficiency, and wide range of output. Its wide range voltage / current output and automatic constant power function can greatly increase the application coverage. Accurate output (voltage: 0.1%+0.1%F.S.; current: 0.1%+0.2%F.S.), fast response (2ms typical) and low ripple noise (Vrms 0.02%F.S. typical) have always been the heritage of Faith Power. For bench top applications, this series provides an intuitive user interface with full keypad and rotary knob. System integrators benefit from the standard USB (virtual SERIAL) and LAN interfaces supporting both SCPI commands and ModBus RTU protocol. Free application software, programming manual and a complete set of development DLLs are available to reduce programming time and increase productivity. The application software allows users to control the power supply, execute test sequences, or log measurements. Voltage: 0 ~ 2250V Current: 0 ~ 6120A Power: 5 to 180kW FTP9000 series is a single channel output programmable DC power supply. The density structure design can effectively save rack space. Also with wide-range output design, can provide a wider range of voltage and current combinations within the specified power range. One unit can be used as multiple power supplies, more flexibility. The CC/CV priority allows user to switch the output mode according to the different needs of the DUT priority, match with the high-precision and high-speed product characteristics, and a variety of standard communication interfaces, simplifying and speeding up the test development, can meet users' variety testing application, widely used in laboratories, production lines, and automatic test systems. FTP9000 series is equipped with LAN/RS485/CAN/GPIB/USB(serial port) interface, supports both SCPI protocol and standard ModBus-RTU protocol, combined with built-in isolation number/mode control interface, bringing great application diversity and convenience for system integration applications.

Feature

： ■ Output voltages: 0 V...80 V up to 0 V... 2250 V; ■ Output current: 0 V...20 A up to 0 V...6120 A; ■ Output power: 5 kW up to 180 kW, expandable up to 1800 kW; ■ CV, CC, CP operation modes; ■ Easy Master-Slave parallel; ■ Precision V & I measurement; ■ High speed programming; ■ Programmable sequence; ■ Voltage & current slew rate control; ■ CV / CC priority; ■ Voltage ramp function; ■ Wide operating region for output; ■ Internal resistance simulating; ■ Remote sense compensation; ■ Optional analog programming & monitoring interface; ■ ±OVP, ±OCP, ±OPP, OTP, ±LVP; ■ Voltage / current / power limit; ■ Standard LAN, USB (serial), optional RS485, GPIB or CAN ports; ■ SCPI and ModBus RTU protocol; ■ CE CERTIFICATED

Application Areas

: power electronics laboratory, flexible application of many specifications Fuel cell, power battery, lead battery, supercapacitor test Simulation of power supply environment for on-board, airborne and shipboard electronic equipment DC charger, charging pile design and test system integration Design and test of server power supply, UPS and inverter Design and test for solar, wind and energy storage Power supply and design test in UAV, laser and sensor fields
