GPP-Series Multi-Output Programmable D.C. Power Supply

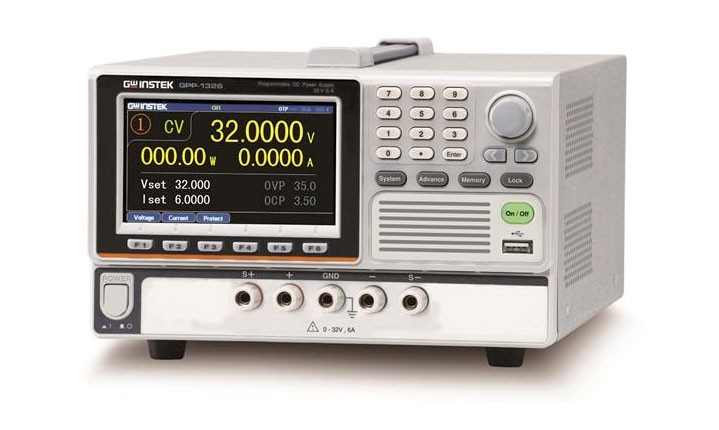

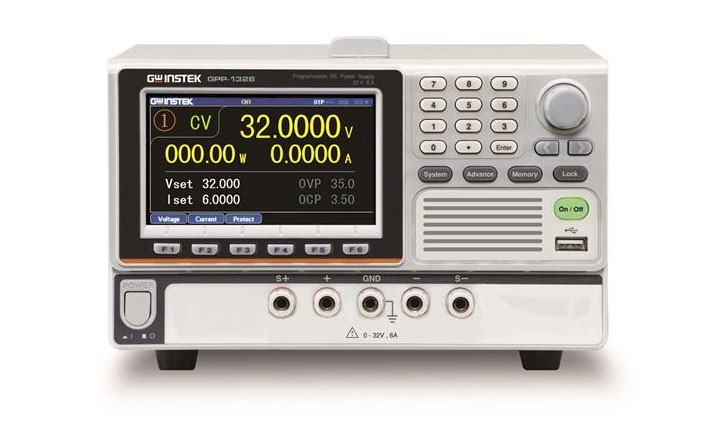

GPP-1326 (32V/6A) Single-output Programmable DC Power Supply

Features

• 4.3”TFT LCD Display • Supports Setting Value, Measurement Value and Output Waveform Display • Load Function (CC, CV, CR Mode) • Setting Resolution: 1mV / 0.1mA; Read Back Resolution: 0.1mV / 0.1mA • Low Ripple Noise: ≦350uVrms/ ≦2mArms • Transient Response Time: ≦50uS • Utilizing Hardware to Realize Over Voltage Protection / Over Current Protection / Over Temperature Protection • Delay Function / Output Monitoring Function / Output Recorder Function • Intelligent Temperature Control Fan Effectively Reduces Noise • Sequential Output Function and Built-in 8 Template Waveforms • The Output Recorder Function Records The Output Voltage & Current Parameters with A Minimum Recording Interval of 1 Second. • Provides 10 Sets of Memory for Each Sequence/Delay/Recorder/Panel Setting Condition • GPP-3323 Supports A USB (Type A) Output Terminal • Standard: RS-232, USB, Ext I/O ; Optional: LAN, GPIB+LAN • Compatible with Commands of GPD-x303S Series

Description

With the maximum output power of 217W, the GPP-Series, the multi-channel programmable DC power supply, includes four models: GPP-1326 (0~32V/0~6A) for single-channel output and GPP-2323 for dual-channel output (CH1:0~32V/0~3A, CH2: 0~32V/0~3A), GPP-3323 for three-channel output (CH1: 0~32V/0~3A, CH2:0~32V/0~3A, CH3: 1.8V, 2.5V, 3.3V, 5.0V/5A) and GPP-4323 for four-channel output (CH1:0~32V/0~3A, CH2:0~32V/0~3A, CH3:0~5V/0 ~1A, CH4: 0~15V/0~1A). This series not only provides high program resolution (1mV/0.1mA) and read back resolution (0.1mV/0.1mA), but also features optimal low-ripple noise characteristics ≦350uVrms/≦2mArms and output transient recovery capability≦50S. Independent output on-off switch is provided for each channel. More detail, please follow the GPP-Series Brochure.

Accessories

User Manual x 1 , Power cord x 1 GPP-1326 Test Lead GTL-104A x 1, GTL-105A x 1 European Test Leads: GPP-1326 GTL-203A x 1, GTL-204A x 1, GTL-201A x 1 Optional Accessories GTL-246 USB Cable GRA-437-J Rack Mount Kit(JIS) GRA-437-E Rack Mount Kit(EIA) Options(Manufacturer Installed Only) LAN Interface; GPIB+LAN Interface
