PEL-500 Series DC Electronic Loads

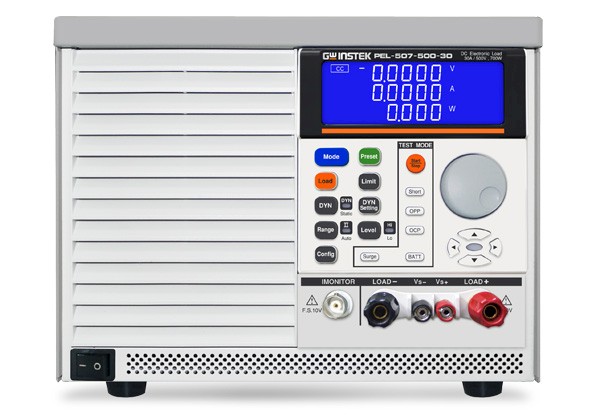

PEL-507-500-30 500V,30A,700W DC Electronic Load

Features

• 5-digit digital voltage, current and power meter • Simultaneous display of voltage, current, and watts • Short-circuit time can be set during short-circuit test • Automatic test function of overcurrent protection/overpower protection • The battery discharge test function can set the discharge stop voltage (Vbatt), discharge capacity (AH, WH) and stop discharge time. • Surge test can simulate boot overshoot current and transient current from hot plugging. • Constant current, constant resistance, constant voltage, constant power and Dynamic mode • Overvoltage, overcurrent, over power, over temperature protection and reverse polarity detection • Voltage polarity display can be set to positive value ("+") or negative value ("-") • Communications interface: RS232, USB

Description

The PEL-500 series single-channel electronic load has a total of 5 models and provides 0~80V/ 0~500V voltage operating ranges and 250~700W power operating range. The series can be applied to R&D, quality control, ATE system and production test, including voltage source/current source test; switching power supply transient response; constant voltage mode for current limiting test; battery simulation; and battery discharge test.

Accessories

Optional Accessories GTL-246 USB Cable, 0.6m GTL-238 RS-232 Cable, 9 pin, M-F Type, 1000mm
