ASR-3000 Series Programmable AC/DC Power Source

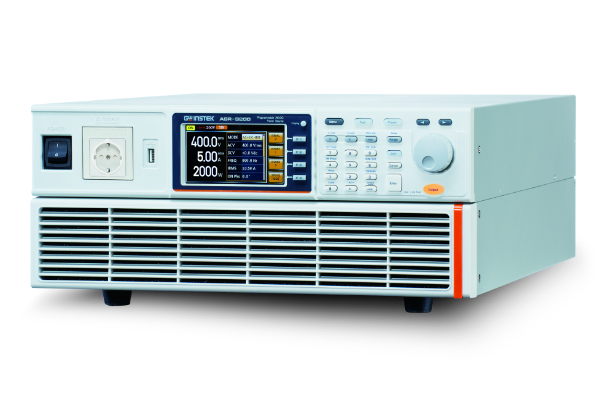

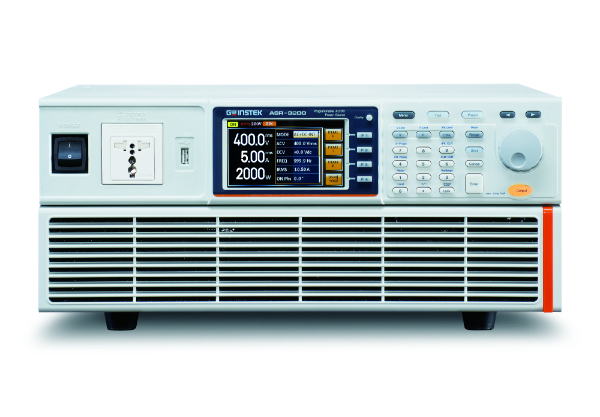

ASR-3200 - 2kVA Programmable AC/DC Power Source

Features

•Output Rating: AC 0 – 400 Vrms, DC 0 - ± 570 V •Output Frequency up to 999.9 Hz •DC Output (100% of Rated Power) •Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF •Voltage and Current Harmonic Analysis(THDv, THDi) •Remote Sensing Capability •OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm. •Support Arbitrary Waveform Function •Output Capacity: 2kVA/ 3kVA/4kVA •Customized Phase Angle for Output On/Off •Sequence and Simulation Function(up to 10 sets) •Interface(std): USB, LAN, RS-232, GPIB •Built-in External Control I/O and External Signal Input •Built-in Output Relay Control •Memory Function (up to 10 sets) •Built-in Web Server

Description

The ASR-3000 series is an AC+DC power source, featuring high-speed DC voltage rising and falling time (≦100us). ASR-3000 is ideal for the development of On-board Chargers, Server Powers, LED modules, AC Motors, AC Fans, UPS, and various electronic components, as well as for testing applications of automotive electrical equipment and home appliances. There are three models of the series: 1. ASR-3200(2kVA) 2. ASR-3300(3kVA) 3. ASR-3400(4kVA) The series can provide rated power output during AC output and DC output. Ten ASR-3000 output modes are available. •AC power output mode (AC-INT Mode) •DC power output mode (DC-INT Mode) •AC/DC power output mode (AC+DC-INT Mode) •External AC signal source mode (AC-EXT Mode) •External AC/DC signal source mode (AC+DC-EXT Mode) •External AC signal superimposition mode (AC-ADD Mode) •External AC/DC signal superimposition mode (AC+DC-ADD Mode) •External AC signal synchronization mode (AC-SYNC Mode) •External AC/DC signal synchronization mode (AC+DC-SYNC Mode) •External DC voltage control of AC output mode (AC-VCA)

Standard Accessories

•CD (User Manual/ Programming Manual) •Safety Guide •Input Terminal Cover •Output Terminal Cover Include Remote Sensing •GRA-442-E Rack Mount Adapter(EIA) •GTL-246 USB Cable

Optional Accessories (factory installed)

•European Output Outlet

Optional Accessories

GPW-005 •Power Cord, 3m, 105℃, UL/CSA Type GPW-006 •Power Cord, 3m, 105℃, VDE Type GPW-007 •Power Cord, 3m, 105℃, PSE Type GRA-442-J •Rack Mount Adapter(JIS) GTL-137 •Output Power Wire(Load wire_10AWG: 50A, 600V/ Sense wire_16AWG: 20A, 600V) GTL-232 •RS232C cable, approx. 2m GTL-248 •GPIB Cable, approx. 2m *ASR-002 •External Three Phase Control Unit for 1P2W, 1P3W, 3P4W output (CE application in progress) APS-008 •Air inlet filter *Functions of ASR-Series are limited when ASR-Series applied to ASR-002 1) No DC Output( 100% of Rated Power). 2) Measurement Items: only current(A), power(W) and PF for each phase. 3) No voltage and current Harmonic Analysis(THDv, THDi) 4) No Remote Sensing Capability 5) No Arbitrary Waveform Function 6) No Sequence and Simulation Function( up to 10 sets) 7) Interface: only support USB 8) Not supported Built-in External Control I/O 9) No memory Function( up to 10 sets) 10) No LAN port(Built-in Web Server)
