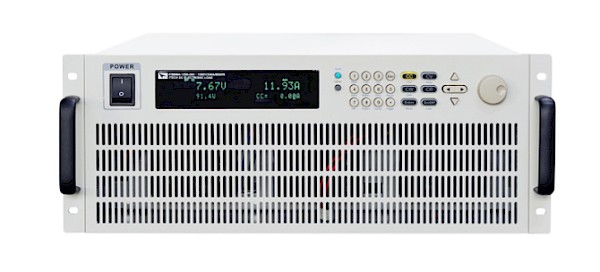

IT8900A/E High Performance High Power DC Electronic Load

IT8942E-1200-1680: 1200V 1680A 42kW

Resolving - 10mV/10mA Accuracy - ±(0.05%+0.05%FS)/ ±(0.01%+0.1%FS) Interface - Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface Size - 37 U

Product Features

• Stand-alone input power: 2kW, 4kW, 6kW, 12kW, 18kW, 24kW, 30kW, 36kW, 42kW, 48kW, 54kW • Voltage range: 150V, 600V, 1200V • Current range: up to 600A for 4u modules (up to 2400A for 24u racks) • Master/slave paralleling control, maximum power expands to 384kW • Multiple operating modes: CC, CV, CR, CP, CC+CV,CV+CR, CR+CC, CP+CC *1 • Adjustable CV loop speed, match different power supplies • 30kHz high-speed dynamic mode, adjustable current rising and falling time *2 • 500kHz high-speed voltage and current sampling rate • Time measurement, battery discharge test function • Short circuit simulation, automatic test function • Soft start and soft stop prevent voltage fluctuations at on/off • Timing control list programming • I-monitor • Built-in LAN, USB, RS232, GPIB, CAN, external analog control interface • OCP/OPP test function • High-precision voltage and current measurement • Protection functions: OVP, OCP, OPP, OTP, current oscillation protection, limited current protection, limited power protection, reverse alarm protection etc. • Up to 100 groups’ memories, with power off memory fu Independent master unit control for easy maintenance installation *1 IT8900E only supports CC, CV, CR, CP operation mode *2 30kHz is only suitable for 150V model Applications • DC charging station, car charger, power electronics and other tests • Fuse and relay aging test • Power battery, lead battery, fuel cell discharge test • Intelligent manufacturing, industrial motor safety testing (such as AGV, robots, etc.) • Virtual load testing of natural energy (solar battery array, wind power generation) • Server power, high voltage UPS, communication power test • A/D power supply and other power electronic components test

Description

IT8900A/E series high performance high power DC electronic load provides three voltage ranges 150V/600V/1200V, stand-alone power from 2kW to 54kW. IT8900A/E series, with ultra-wide voltage and current range, controlled by an independent master unit. The power expands to 600kW by master-slave paralleling. Ultra-high power density, 6kW is with only 4U height. IT8900A/E series has eight (A series) / four (E series) working modes, faster loop response and current rising and falling speed, as well as dynamic mode, OCP test, OPP test, automatic test and battery test functions. Built-in CAN, LAN, GPIB, USB, RS232 and analog interfaces, etc., IT8900A/E series has full protection function, which can be applied to power battery discharge, DC charging station, on-board charger (OBC), power electronics and other power electronics products.

Options & Accessories

USB For USB port communication CD (accessory) With user manual and communication AC power cord (accessory) AC power cord (accessory) IT-E32410-OO (Optional) IT-E32420-OO (Optional) IT-E33620-OO (Optional)
