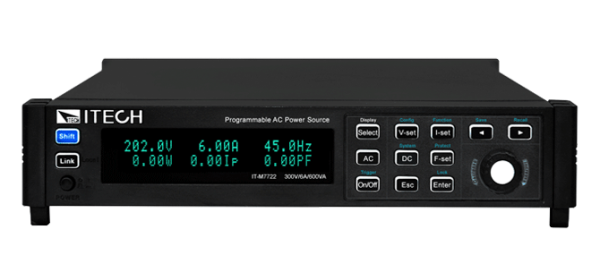

IT-M7700 High Performance Programmable AC Power Supply

IT-M7722: 300V 6A 600VA

Resolving - 0.1V/10mA Accuracy - ±(0.25%×VDC +0.25%×F.S.) Interface - Optional RS232/CAN/LAN/GPIB/USB/External analog Size - ½ 1U

Product Features

•1U half rack compact design, increased space utilization •AC, DC, AC + DC output modes, DC voltage offset simulation in AC + DC mode • Built-in AC power meter with powerful functions • Built-in abundant waveform database, including 30 harmonic distortion waveforms*1 • List mode, simulate civil AC working condition, realize instantaneous power interruption simulation function*1*2 • Arbitrary waveform output function, user can customize waveforms*1 • Harmonic analysis function*1*5 • Harmonic simulation function*1 •Surge/Trap function*1 •Front and rear edge Dimmer phase dimming function • Settable output waveform start/stop phase angle *1 • Higher voltage available by two units in series connection*1*3*4 • Three phase output available by three units Y-type external connections*1*3*4 •Optional interfaces include RS232, CAN*4, LAN, GPIB, •USB_TMC,USB_VCP, external analog, IO. Flexible and cost effective • With professional software, set up programs comply with multinational security regulations and test conditions, to complete IEC related standards testing*1*4 *1 IT-M7721L/IT-M7722L does not have this function *2 Realize by PC software *3 IT-M7723 does not have this function *4 Coming soon *5 Voltage harmonic analysis, current harmonic analysis is coming out

Product Description

ITECH newly-launched IT-M7700 High Performance Programmable AC Power Supply combines intelligence and flexibility, breaks through the huge defects of the traditional AC power source, reduces the size to only 1U half rack, maximizes space utilization. Built-in power meter and arbitrary waveform generator make it convenient to simulate various arbitrary waveform outputs. IT-M7700 programmable ac power supply is designed with advanced technologies of programmable AC and DC power supplies, and can be widely used in multiple fields such as power energy products, home appliances, industrial electronics, and IEC standards testing.

Options & Accessories

AC power cord (accessory) IT-E251(Optional) Multi-machine interconnection IT-E1209(Optional) USB communication card IT-E1208(Optional) External analog quantity/RS485... IT-E1207(Optional) RS232/CAN communication card IT-E1206(Optional) USB/LAN communication card IT-E1205(Optional) GPIB IT cabinet(Optional) IT cabinet 15U/27U/37U IT-E154A Install effect chart IT-E154A(Optional) IT-E154B Install effect chart IT-E154B(Optional) IT-E154A+IT-E154C IT-E154C(Optional) IT-E154A+IT-E154D IT-E154D(Optional) IT-E154B+IT-E154C Install effect chart IT-E30110-AB(Optional) IT-E30110-BB(Optional) IT-E30110-BY(Optional) IT-E30312(20)-YY(Optional) IT-E30615-OO(Optional) IT-E31220-OO(Optional) IT-E32410(20)-OO(Optional) IT-E33620-OO(Optional)
