S3302 Series Handheld Spectrum Analyzer

Description

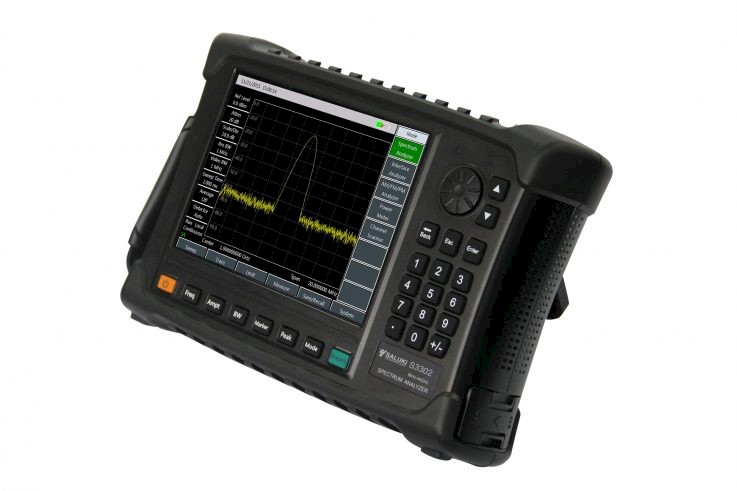

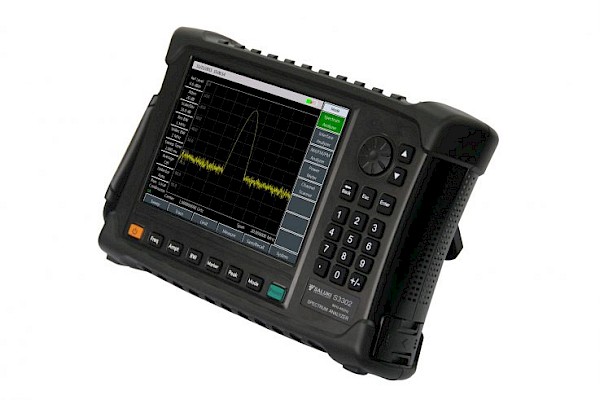

Saluki S3302 series handheld spectrum analyzer is a high-end handheld instrument. It provides multi-function which includes spectrum analysis, interference analysis, analog demodulation, power measurement, channel scan function, channel power etc. S3302 also provides easy-to-use functions like occupied bandwidth, adjacent channel power, audio demodulation, noise-carrier ratio measurement. S3302 series spectrum analyzer is equipped with an 8.4-inch integrated LCD touch screen that improves display clarity and ease of operation. It is hand-held, small in size, light weight, and easy to take so it is very suitable for on-site measurement.

Key Features

•Wide frequency range cover from 9kHz to 67GHz, 9 models •Low displayed average noise level up to -163dBm @ 1Hz RBW (typical) •Fast scanning speed: 1GHz span fastest sweep time <20ms •Resolution bandwidth: 1Hz - 10MHz •Standard ull-band pre-amplifier configuration •Abundant basic and smart measurement function options •8.4-inch bright LCD touch screen, convenient user experience, various auxiliary test interfaces

High-end Portable Spectrum Analyzer, 9 kHz to 67 GHz

Saluki S3302 series handheld spectrum analyzer is a high-end handheld instrument. It is hand-held, small in size, light weight, and easy to take so it is very suitable for on-site measurement. S3302 series has 9 modules, with frequency from 9 kHz to 4GHz/ 6.5GHz/ 9GHz/ 20GHz/ 26.5GHz/ 32GHz/ 44GHz/ 50GHz/ 67GHz. Excellent phase noise performance: • S3302SA/SB/SC: -112dBc/Hz @100kHz frequency offset @1GHz carrier • S3302A/B/C/D/E/F: -106dBc/Hz @100kHz frequency offset @1GHz carrier

Abundant Auxiliary Test Interface, Physical Keys

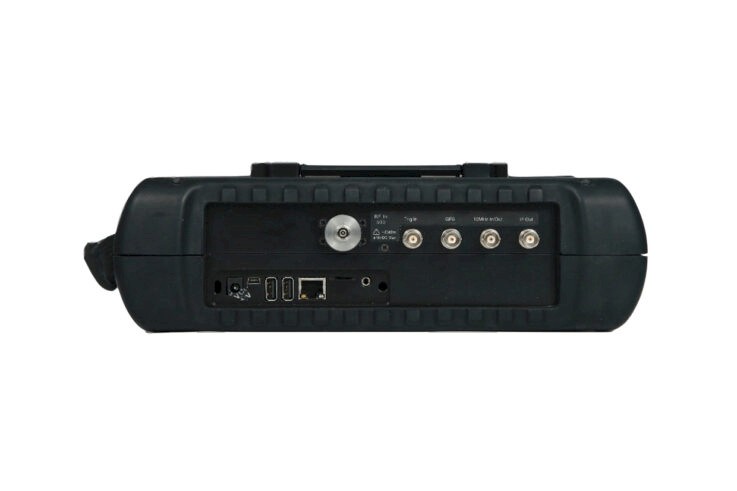

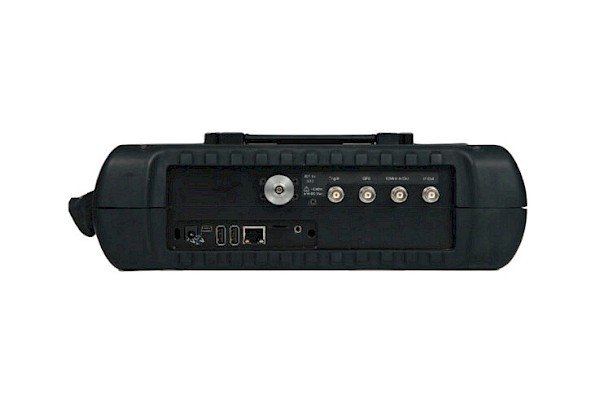

S3302 series handheld spectrum analyzer has a variety of auxiliary test interfaces: • 10MHz reference input/output interface • GPS antenna interface • Zero span IF output interface • External triggering input interface

Convenient user experiences:

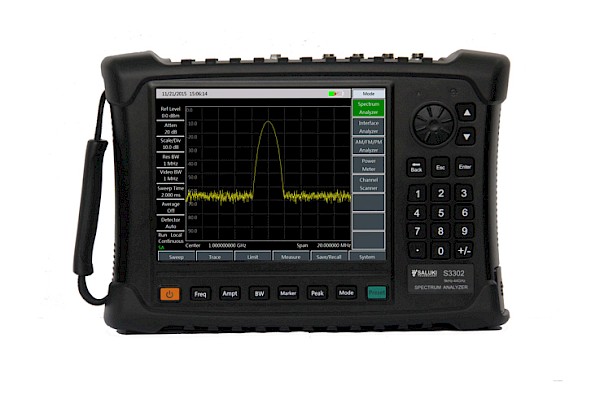

• 8.4-inch bright LCD screen and large font display • Convenient touch screen and physical keys operation • A variety of display modes and automatically adjust the back-light brightness, etc. • Powered by battery or AC adapter

Multiple Measurement Functions

Measurement function modes:

Spectrum analyzer, interference analyzer (spectrogram, RSSI), AM/FM/PM analyzer, channel scanner, high accuracy power meter, signal analyzer, high-precision USB power measurement, GPS location, etc.

Smart measurement functions:

Field strength measurement, channel power, occupied bandwidth, adjacent-channel power ratio, tune&listen, carrier-to-noise ratio, emission mask, etc. Various optional measurement modes for your choice!
