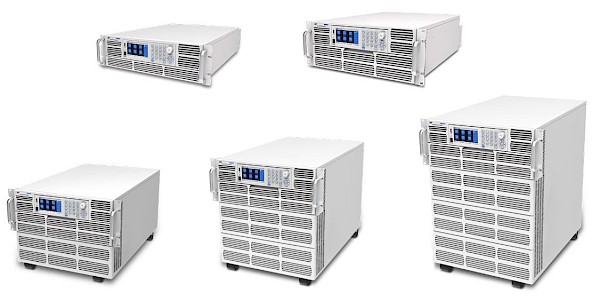

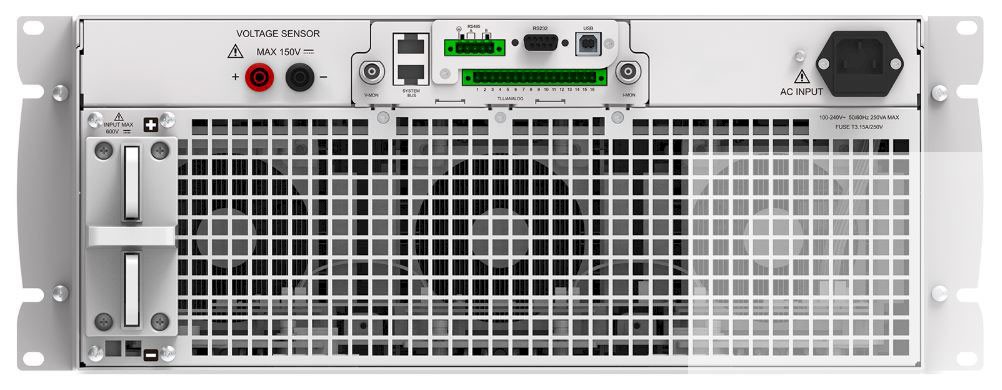

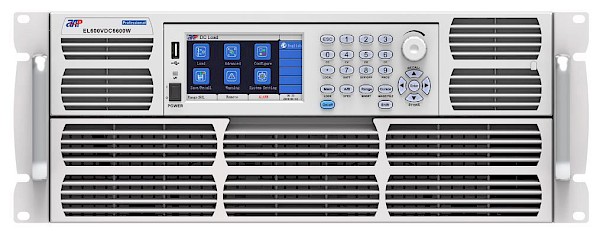

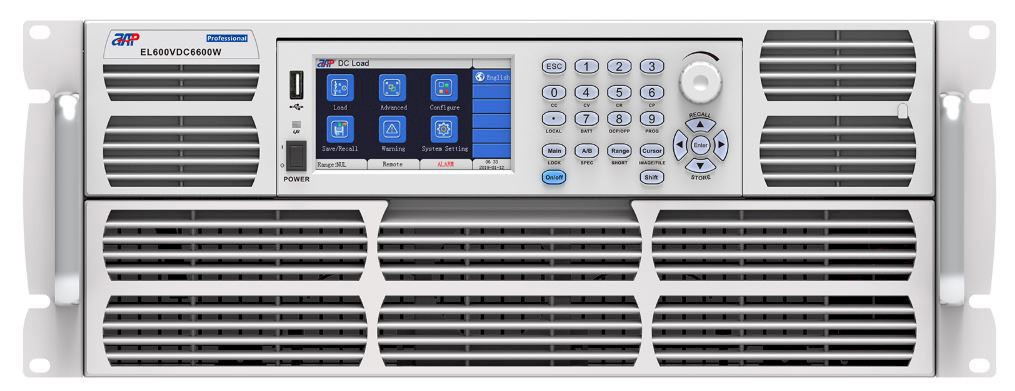

The EL Series DC Electronic DC Loads This series of programmable electronic DC loads with high power density offers three voltage ranges 200V / 600V / 1200V. Supports the 4 basic operating modes CV, CC, CR and CP as well as the 3 complex operating modes CV + CC, CV + CR, CR + CC. Full protection including OCP, OPP, OTP, over-voltage and reverse alarm. Supports external control and monitoring mode, the 0 to 10V input or output signal represents 0 to the full voltage or current range. Provides OCP test, OPP test and short circuit simulation to effectively solve application requirements for performance and automated tests. Built-in RS232, RS485 and USB communication interfaces, LAN & GPIB communication card is optional. Up to 20 loads can be connected in master-slave parallel mode to provide more power (up to 528KW) or current capacity. Features of the EL Series DC Electronic DC Loads • A hinged front panel and a colour touchscreen enable convenient access and operation • Provides four kinds of basic working modes like CV / CC / CR / CP and CV + CC / CV + CR / CR + CC complex modes of operation • Adjustable current slew rate, adjustable CV loop speed • Ultra-high-precision voltage and current measurement • OCP / OPP test function • 50kHz high speed CC / CR dynamic mode • 500kHz high-speed voltage and current sampling rate • Timing & discharge measurement for batteries • Short circuit test mode • The auto mode function makes it easy to conduct complex tests • V-monitoring / I-monitoring • LED load simulation function • Full protection: OCP, OPP, OTP, over-voltage and reverse polarity alarm • Parallel master / slave control of up to 20 devices • Front panel USB interface supports data import and export • SCPI language and standard rack size make it ideal for ATE system integration • Intelligent fan control with lower noise level and better environmental compatibility • Multiple versions to meet cost performance and different applications • 2 Years Warranty
