Product Introduction

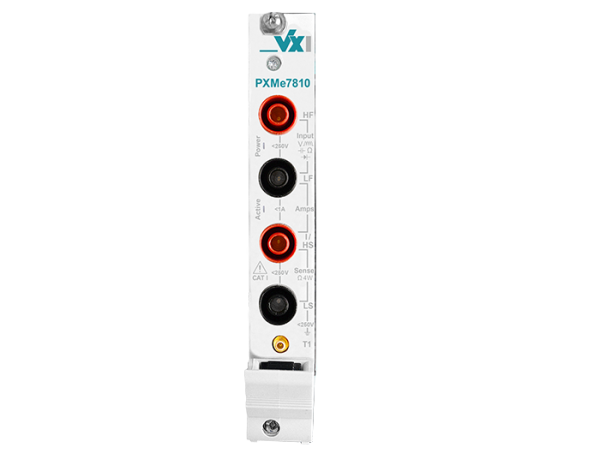

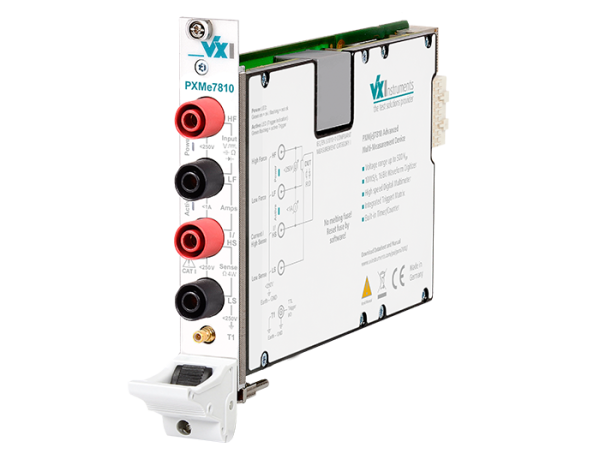

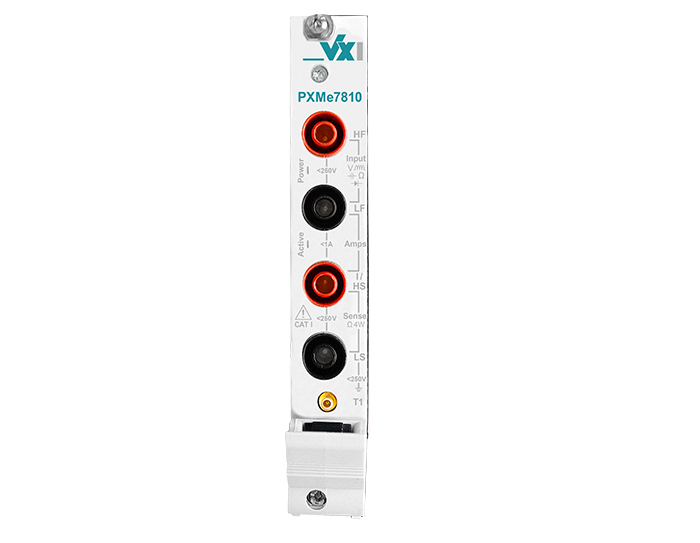

The PXM Multi-Measurement Devices combine the functionalities of a digitizer, a multimeter, a timer/counter and a highly flexible trigger matrix in a PXI or PXIe device.
Features
4 Instruments in 1 device:
16 Bit high precision Digital Multimeter
16 Bit isolated Digitizer
Trigger Matrix
Timer/Counter
Changing range in under 1 ms
1 Trigger I/O an der Geräte-Front (8 auf der Rückseite)
2- and 4-wire resistance measurement
Measure from 250 mV up to 500 Vpp
>1 GΩ || <20 pF input impedance
Available with PXI or PXI Express interface
Fully isolated design
Compatible with Pickering LXI-Chassis
Product Information
Complex test scenarios require increasingly simple solutions while reducing the overall costs. The innovative "Multi-Measurement Device" (MMD) architecture of VX Instruments combines four different functionalities on a compact plug-in module (1 PXI slot) and thus expands the application possibilities of a classic digital multimeter:
Digital multimeter
Oscilloscopes / digitizers
Timer/counter
Trigger matrix
The extremely short configuration times of the measuring mode and measuring range significantly reduce the test time. This is particularly important when it comes to fully automated test environments.
With the integrated digitizer functionality, signal curves of up to 10 MS/s can be recorded at a constant 16 Bit resolution. The often common degradation of the resolution at high sample rates, therefore, does not need to be taken into account.
Electronic protection devices on the module increase the robustness of the device and thus the availability when used in an industrial environment.
Options
| Ordering Information |
Comment |
| PXM7810 |
Device with PXI interface |
| PXMe7810 |
Device with PXI Express interface |
| Accessory Parts |
MPN |
VPN |
| SMB connector soldering |
11_SMB-50-1-40 |
ZJ1522-0 |
| Isolation sleeve |
78_Z-5-1-1 |
ZJ1523-0 |
