Product Introduction

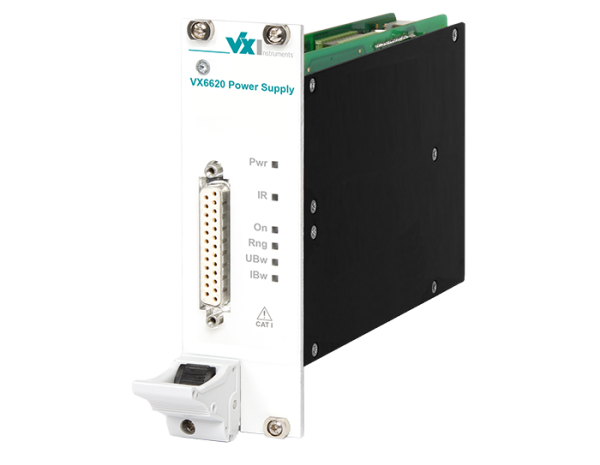

Isolated PXI power supply with 4-quadrant operation and very low noise. Two performance ranges are optionally available.

Features

•CompactPCI system power supply •Supports current source and sink •No external power source required •Dual mode, provides two power ranges •Measurement function for output voltage and current •Very fast rise and fall times •Sense inputs for superior load regulation •Autosensing to protect DUTs reliably •Digital calibration via system interface

Product Information

The potential-free power supplies of the VX66xx family stand for precision and reliability and are characterized by many extras such as extremely low noise, very short rise and fall times and additional measurement functions. The energy is completely provided by the PXI chassis, therefore external power supplies are not necessary. All outputs are galvanically isolated, which among other things ensures low signal noise. It is also possible to connect power supplies in series.

Options

Ordering Information Comment VX 6620-10 Output power: ±10 V / ±1 A VX 6620-20 Output power: ±20 V / ±0.5 A VX 6620-40 Output power: ±40 V/±0.25 A VX 6620-60 Output power: ±60 V/±0.20 A Option A (always included) Measurement unit for voltage and current Option B (always included) Dual mode, provides a second power range with half voltage and higher current Option C Low noise option Option PBF All components RoHS compliant
