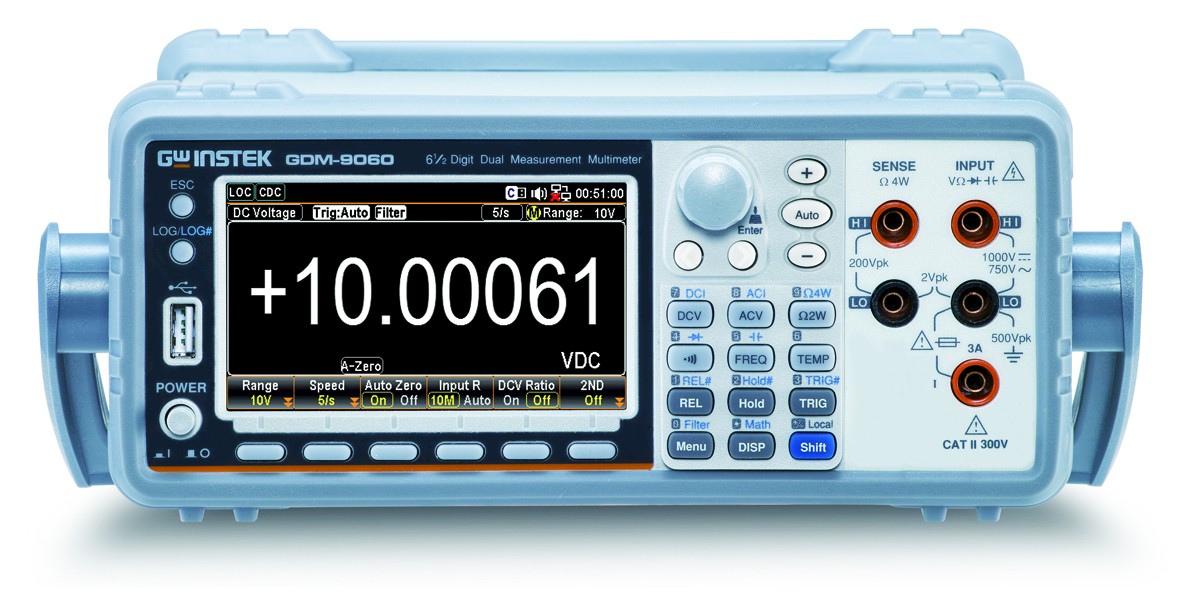

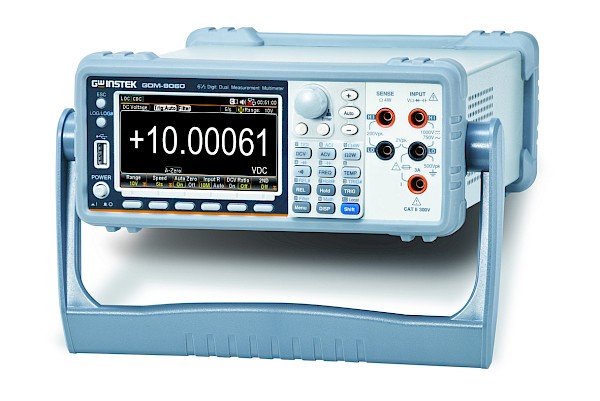

GDM-9060 6 1/2 (1200000 counts) Digit Dual Measurement Multimeter. DCV Basic Accuracy:0.0075%

Features

• 6 1/2 Digit Display:1,200,000 Counts
• 4.3 TFT Graphic LCD
• DCV Basic Accuracy:0.0035%(GDM-9061)/0.0075%(GDM-9060)
• 12 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Diode, Continuity, Temperature and Capacitance
• Sampling Rate up to 10k SPS (GDM-9061)
• Dual Measurement Function to Providing Two Selected Measurement Simultaneously
• Offer Graphical Capabilities lncluding Histogram, Bar Meter and Trend
• Temperature Measurement Support RTD, Thermistor as Well as Thermocouple

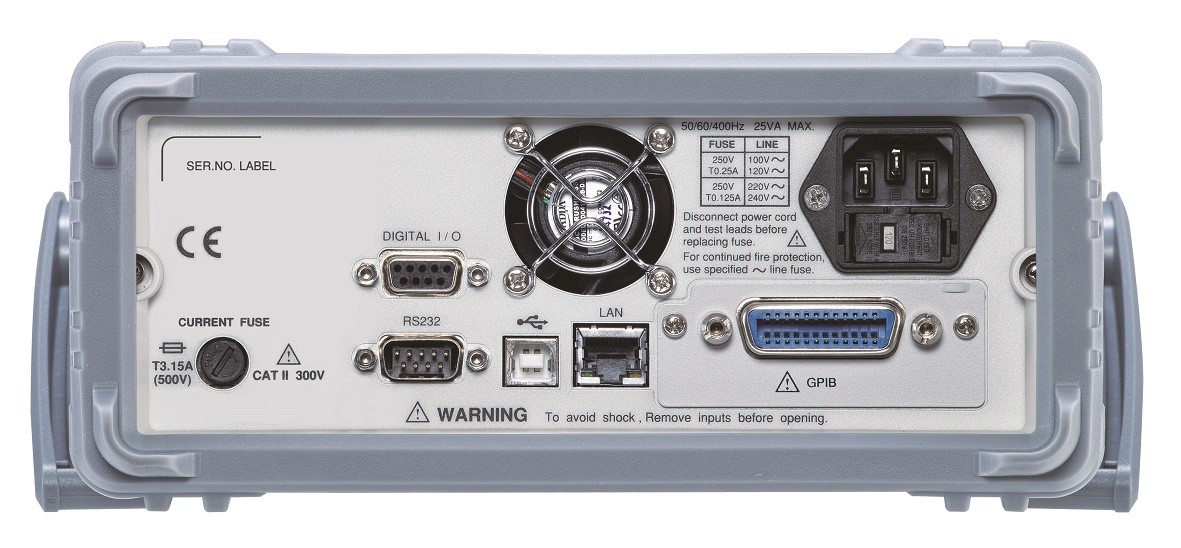

• Standard Interfaces: USB Host/Device, RS-232C, LAN, Digital I/O
• Optional Interface: GPIB

Description

• GW Instek launches GDM-906X series 6 ½ digit dual measurement multimeter (2 models: GDM-9061 and GDM-9060), featuring high precision DC voltage accuracy, fast sampling rate, 12 measurement functions (DC voltage/current, AC voltage/current, 2-wire/4-wire resistance, frequency, period, diode, continuity beeper, temperature, capacitance), 6 mathematical functions (dB/dBm/Compare/ MX+B/Percent and 1/X) as well as a variety of communications interfaces (USB device/host, RS-232C, LAN, digital I/O and optional GPIB) to provide comprehensive measurement capabilities, higher speed and accuracy.
• More detail, please follow the GDM-906X Brochure.

Accessories

Included Accessories

• Safety Instructions x1, Power cord x1,
• USB cable GTL-246 x1, Test lead GTL-217 x1,
• CD x1(including the complete user manual, upgrade program and PC software, DMM-Viewer2)

Option

• GDM-90G1 GPIB card
• (*) GPIB can be installed at customer site

Optional Accessories

• GTL-205A Temperature Probe Adapter with Thermocoupling (K-type), approx. 1000mm
• GTL-234 RS-232C Cable, 9-pin female-female cable, null modem for computer, approx. 2000mm
• GTL-248 GPIB Cable, approx. 2000mm
• GTL-308 4Wire Type (+shield) Test Lead, approx. 1500mm
• GRA-422 Rack Mount Kit (19",2U)
• GDM-TL1 Test Lead Set for All DMM
• GSC-014 Soft Carrying case for DMM Accessory
