GDS-3000 Series Digital Storage Oscilloscopes

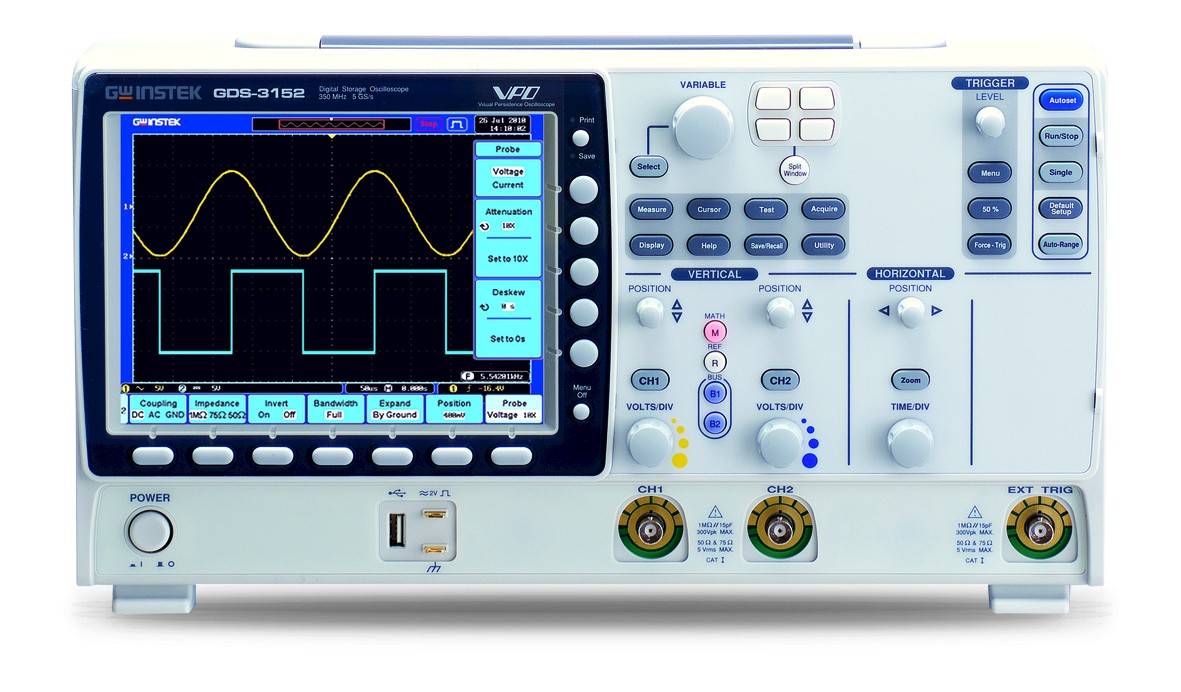

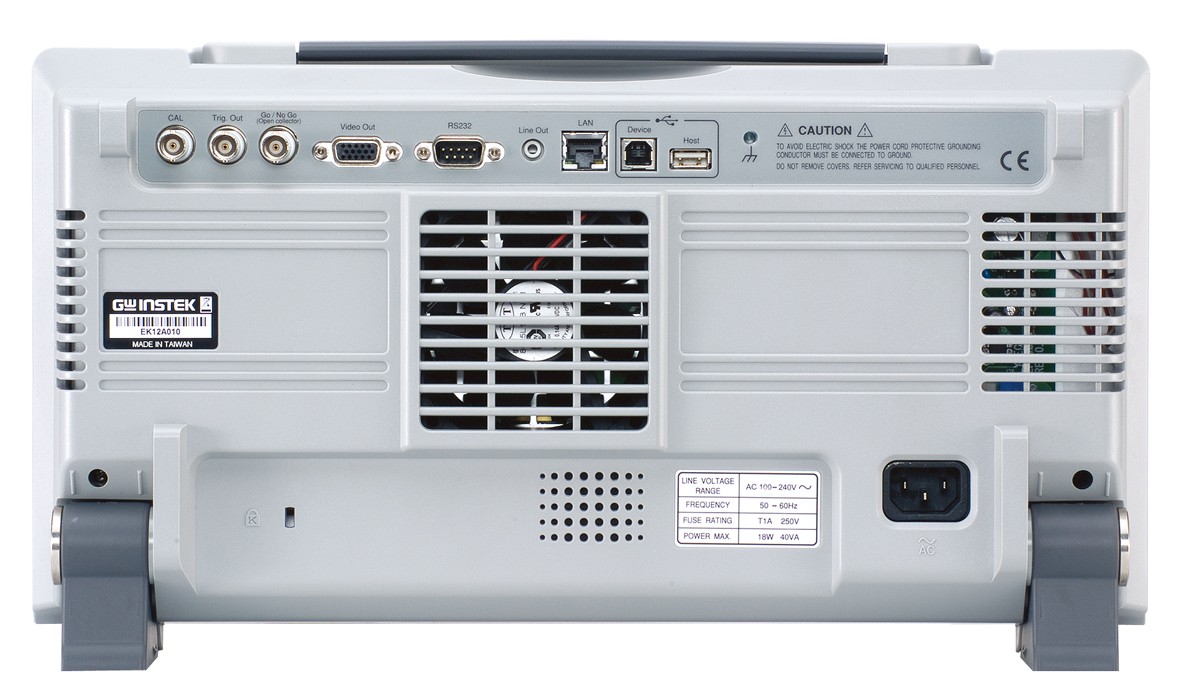

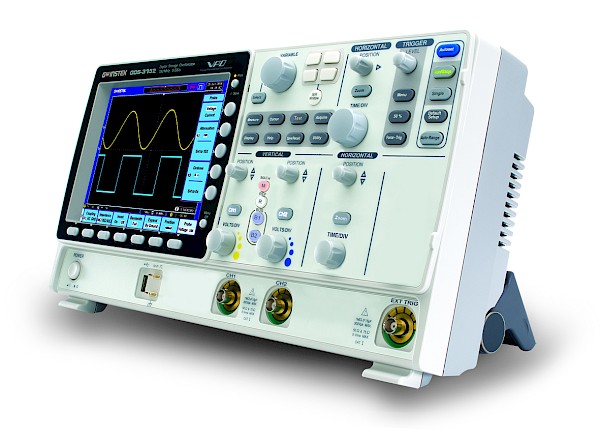

GDS-3502 500MHz, 2-Channel Visual Persistence Oscilloscope

Features

• 500/350/250/150MHz with 2/4 Channels
• 5GSa/s RT or 100GSa/s ET Sampling Rate
• Independent Memory for Each Channel
• VPO Technology
• Large 8-inch 800x600 Display
• Split Screen Function
• 3 Built-in Impedances (50Ω/75Ω/1MΩ)
• Power Analysis Software (Optional)
• Serial Bus Analysis Software for I2C, SPI and UART (Optional)

Description

A Hi-tech DSO Platform

The GDS-3000 Series is a platform of 4-input channels, 500MHz bandwidth, 5GSa/s sampling rate, and VPO waveform display. The split screen feature has been designed to meet the requirements of multi-window & multi-signal tests in the research and the manufacturing fields. The optional power analysis software and the optional serial bus analysis software are available to facilitate the engineer's tasks in testing and manufacturing of the associated products.

The differential probe, GDP-025, GDP-050 & GDP-100, and current probes, GCP-020, GCP-100 and GCP-530 & GCP-1030, are coming along with the GDS-3000 Series to provide total solutions for a wide variety of applications in the industry, service and education market sectors. The GDS-3000 Series, a high-tech platform carrying thoughtful features, brings very high customer value to both general purpose market and professional market.

Accessories

Accessory

• User manual CD x 1 , Power cord x1
• GTP-151R 150MHz(10:1) passive probe for GDS-3152/ 3154 (per channel)
• GTP-251R 250MHz(10:1) passive probe for GDS-3252/ 3254 (per channel)
• GTP-351R 350MHz(10:1) passive probe for GDS-3352/ 3354 (per channel)
• GTP-501R 500MHz(10:1) passive probe for GDS-3502/ 3504 (per channel)

Optional Accessories

• GUG-001 GPIB to USB adapter
• GTP-033A 35MHz 1:1 passive probe
• GTP-352R 350MHz(20:1) passive probe
• GDP-025 25MHz high voltage differential probe
• GDP-050 50MHz 25MHz high voltage differential probe
• GDP-100 100MHz 25MHz high voltage differential probe
• GCP-005 1kHz/5A Current probe
• GCP-020 10kHz/200A Current probe
• GCP-100 100 kHz/100A Current probe
• GCP-530 50MHz/ 30A Current probe
• GCP-1030 100MHz/ 30A Current probe
• GCP-206P Power supply for current probe (2 input channels)
• GCP-425P Power supply for current probe (4 input channels)
• GTL-248 GPIB Cable, Double Shielded, 2000mm
• GTL-251 USB-GPIB Adapter, GPIB-USB-HS, USB 2.0, Hi-Speed USB compliance, 2000mm
• GSC-008 Soft Carrying Case
• GTL-110 Test lead, BNC to BNC connector
• GTL-232 RS-232C cable, 9-pin female to 9-pin female, Null Modem for computer
• GTL-246 USB 2.0 cable, A-B type cable 4P, 1800mm
• GRA-411 Rack Adapter Panel
• GDB-03 Oscilloscope Education and Training Kit
• GKT-100 Deskew fixture
