GPD-Series Multiple Output Programmable Linear D.C. Power Supply

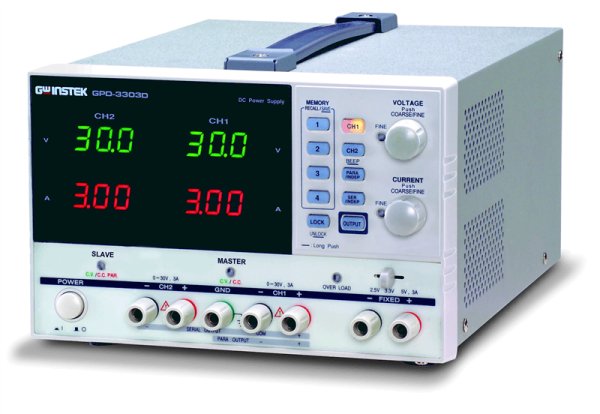

GPD-3303D 195W, 3-Channel, Programmable Linear D.C. Power Supply

Features

• 2/3/4 Independent Isolated Output
• 4 LED Display Sets: 3 digits after decimal point
• Minimum Resolution :
• 1mV/1mA(GPD-2303D/GPD-3303S/GPD-4303S)
• 100mV/10mA(GPD-3303D)
• Digital panel control(rotary encoder Switch, rubber key with indicator)
• User-friendly operation, coarse/fine volume control
• 4 Sets Save/Recall
• Key-Lock
• Output on/off
• Tracking Series and Parallel mode
• Smart cooling fan achieving low noise
• USB Standard Interface
• PC Software & USB Driver
• Labview driver

Description

The GPD-X303S Series contains the superior technology and high quality which GW Instek had established through its long history of power supply design and manufacturing. The GPD-X303 Series offers digital panel control, large display, bright LED indicators, high output resolution, 4 sets of setup memory, USB remote control and smart cooling fan control. Additionally , the GPD-X303S Series provides easy operation , a wide selection of panel setting and operation.

All these features make the GPD-X303 Series the most promising new comer in the power supply market.

Accessories

• User Manual X 1 , Power Cord X 1
• GPD-2303S Test Lead GTL-104A x 2 ；European Test Lead GTL-204A x 2, GTL-201A x 1
• GPD-3303S Test Lead GTL-104A x 2 , GTL-105A x 1；European Test Lead GTL-203A x 1, GTL-204A x 2, GTL-201A x 1
• GPD-4303S Test Lead GTL-104A x 2 , GTL-105A x 2；European Test Lead GTL-203A x 2, GTL-204A x 2, GTL-201A x 1
• GPD-3303D Test Lead GTL-104A x 2 , GTL-105A x 1；European Test Lead GTL-203A x 1, GTL-204A x 2, GTL-201A x 1
