Features

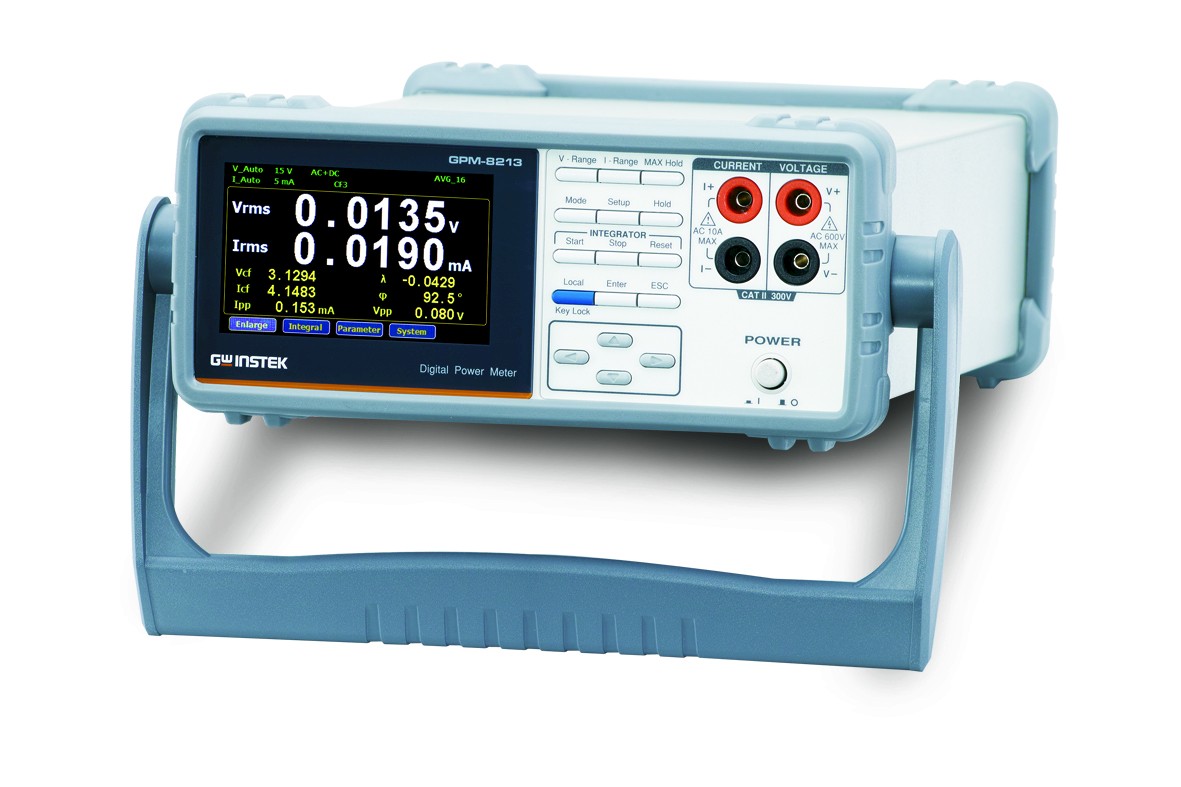

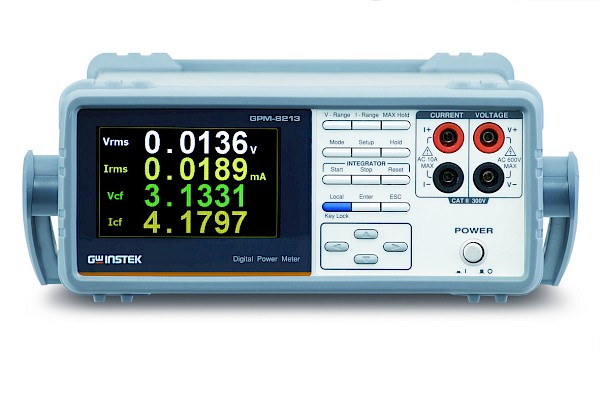

• 4” TFT LCD
• Two data display modes
• Standard : two major measurement items + six secondary measurement items
• Simple : displaying test data of four different measurement items
• Met the SPECpower measurement requirement
• Met the requirement of IEC 62301 power measurement
• Voltage/ current test frequency bandwidth : DC~6kHz
• Watt resolution : 1mW
• Lowest current range : 5mA, resolution : 0.1uA
• Current/voltage measurements reach CF=3 for distorted wave and CF=6 for half range
• W-h (power vs time)/A-h (current vs time) integration function
• Total harmonic distortion measurement

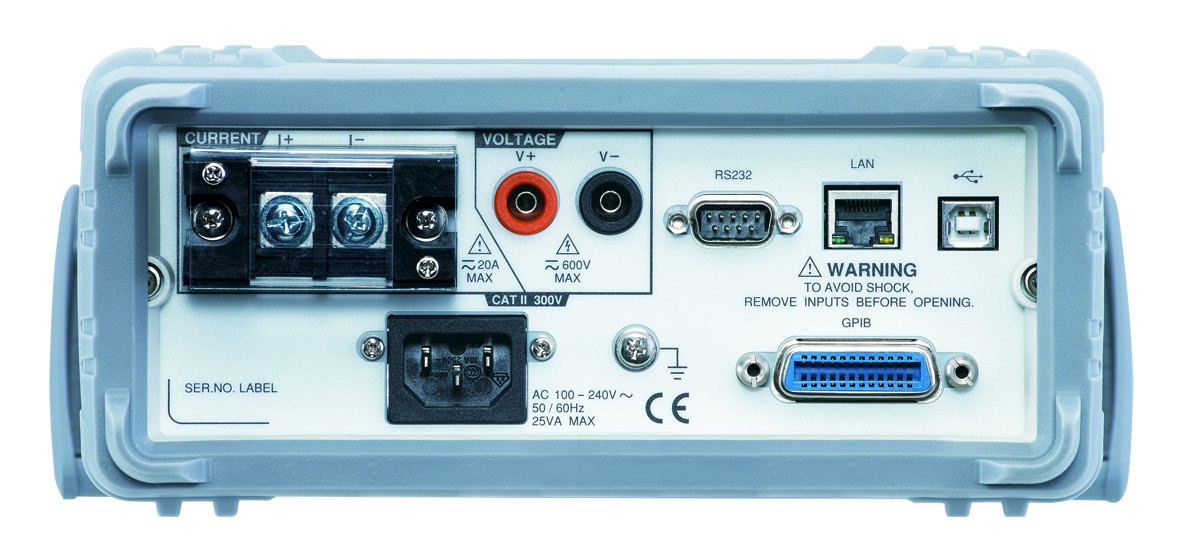

• Front panel test terminal
• Standard interface : RS-232C, USB device, LAN
• Optional interface : GPIB
• Optional test fixture : GPM-001

Description

GW Instek GPM-8213 power meter is designed specifically for single-phase (1P/2W) AC power supply’s power measurements. Powerful features, including 4” TFT LCD, five-digit measurement display, 19 power measurement parameters, integral measurement function, high-accuracy voltage/current/power measurement capabilities, front/rear panel input terminals, and various communications ports, are to facilitate users with clear, convenient, and accurate power measurements. More details, please follow GPM-8213 brochure.

Accessories

Included Accessories

• Safety Instruction Sheet x1, Power cord x1, Test lead GTL-209 x2,
• CD x1 (including complete user manual and USB driver)

Option

• GPM-82G1 GPIB Interface
• Note : Optional GBIP interface must be installed in factory.

Optional Accessories

• GPM-001 Test Fixture (Universal or Europe socket)
• GTL-232 RS-232C cable, 9-pin Female to 9-pin, null modem for computer, Approx. 2000mm
• GTL-246 USB Cable, A-B type, Approx. 1200mm
• GTL-248 GPIB Cable, Approx. 2000mm
• GRA-422 Rack Mount Kit (19" 2U)
