MDO-2000E Series Mixed-domain Oscilloscopes

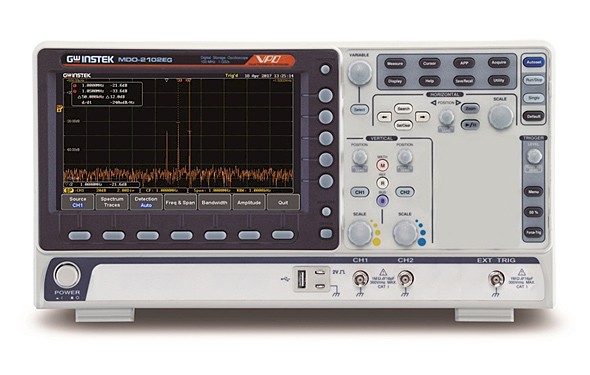

MDO-2102EG 100MHz , 2-channel, Digital Storage Oscilloscope，Spectrum analyzer ,dual channel 25MHz AWG

Features

• 200/100/70MHz bandwidth selections ; 2 or 4 channels
• Real time sampling rate for each channel is 1GSa/s (2 channel models)
• Maximum real time sampling rate is 1GSa/s (4 channel models)
• Per Channel 10M memory depth and VPO waveform display technology
• Waveform update rate up to 120,000 wfms/s
• 8 “ WVGA TFT LCD display
• Free Frequency Response Analyzer Software
• Maximum 1M FFT provides higher frequency domain resolution measurements
• High ,low and band pass filter functions
• 29,000 segmented memories and waveform search functions
• I2C/SPI/UART/CAN/LIN serial bus trigger and decoding function
• Data log function is able to track signal changes up to 1000 hours
• Network storage function
• Mask test function
• MDO-2000EG equips with a spectrum analyzer and a dual channel 25MHz AWG MDO-2000EX equips with a spectrum analyzer ; a dual channel 25MHz AWG; DMM and power supply
• True RMS measurement in DMM function

Description

One Oscilloscope ,Two Domains

MDO-2000E series is multi-functional mixed domain oscilloscope. The series includes two feature combinations : MDO-2000EG and MDO-2000EX. MDO-2000EG models have a built-in spectrum analyzer and a dual channel 25MHz arbitrary waveform generator and MDO-2000EX models feature a built-in a spectrum analyzer, arbitrary waveform generator, a 5,000 count DMM, and a 5V/1A power supply. The first of its kind, MDO-2000EX is the only oscilloscope to equip with a DMM and a power supply in the T&M industry. More details, please follow MDO-2000E series brochure.

Accessories

Accessory

• User Manual CD x1, Power Code x1
• GTL-110 BNC-BNC cable*2
• GTL-105A Alligator Clip test lead (only on MDO-2000EX)
• GTL-207 Banana plug test lead (only on MDO-2000EX)
• GTP-070B-4 70MHz(10:1/1:1)Switchable passive probe for MDO-2072E(X)/2074E(X)(one per channel)
• GTP-100B-4 100MHz(10:1/1:1)Switchable passive probe for MDO-2102E(X)/2104E(X)(one per channel)
• GTP-200B-4 200MHz(10:1/1:1)Switchable passive probe for MDO-2202E(X)/2204E(X)(one per channel)

Optional Accessories

• GRA-426 Rack Adapter Panel
• GAK-003 50 Impedance Adapter
• GSC-008 Soft Carrying Case
• GTL-246 USB Cable, USB 2.0, A-B Type, 1200mm
• GDB-03 Oscilloscope Education & Training Kit
• GTP-033A Oscilloscope Probe, 35MHz 1:1 Passive Probe, BNC(P/M)
• GCP-020 Current Probe, 40Hz~40kHz, 240A, Current Probe
• GCP-100 Current Probe, DC~100 kHz, 100A, Current Probe
• GCP-1030 Current Probe, DC~100MHz, 30Arms, Current Probe
• GCP-206P Current Probe - Power Supply, 2 Channel Power Supply for GCP-530/1030
• GCP-425P Current Probe - Power Supply, 4 Channel Power Supply for GCP-530/1030
• GCP-530 Current Probe, DC~50MHz, 30Arms, Current Probe
• GDP-025 Differential Probe, 25M High Voltage Differntial Probe
• GDP-050 Differential Probe, 50M High Voltage Differntial Probe
