MDO-2000A Series Mixed-domain Oscilloscopes

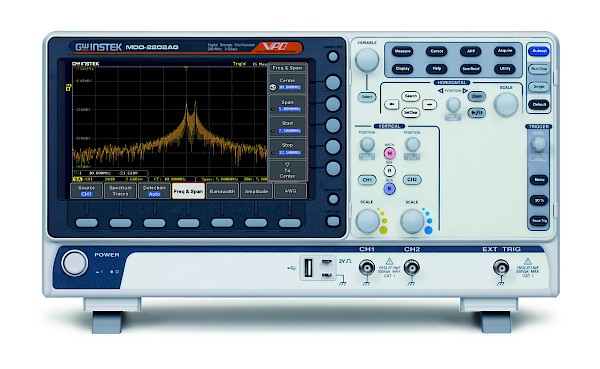

MDO-2202AG 200MHz, 2-channel, Digital Storage Oscilloscope, Spectrum Analyzer, dual channel 25MHz AWG

Features

• 300/200/100MHz bandwidth selections ;2 channels
• Real time sampling rate is 2GSa/s max.
• Per Channel 20M memory depth and VPO waveform display technology
• Waveform update rate up to 120,000 wfms/s
• 8 “ WVGA TFT LCD display
• Maximum 1M FFT provides higher frequency domain resolution measurements
• High ,low and band pass filter functions
• 29,000 segmented memories and waveform search functions
• I2C/UART/CAN/LIN serial bus trigger and decoding function
• Data log function is able to track signal changes up to 1000 hours
• Network storage function
• Mask test function
• MDO-2000AG equips with a dual channel 25MHz AWG

Description

MDO-2000A is an advanced version of MDO-2000E. The selectable bandwidth range is upgraded to 300MHz. The full bandwidth ranges include 300MHz, 200MHz and 100MHz. The sampling rate has upgraded to Max. 2GSa/s and the memory depth has also been upgraded to 20M/CH. Hence, the three major specifications of oscilloscopes have been improved. The new models of the series feature 2 channels including MDO-2000A and MDO-2000AG. The entire series offers the functions of oscilloscope and spectrum analyzer. On top of that, MDO-2000AG features a dual-channel 25MHz arbitrary waveform generator. The new generation MDO-2000A series provides better sampling rate and memory depth for users to obtain more realistic signal integrity, and higher bandwidth selections meet the measurement requirements of higher frequencies.

Standard Accessories

• Power Cord, Certificate of Calibration,
• CD-ROM (with Quick Start Guide, User Manual, Programming Manual)
• Passive probe (one probe per channel)
• GTL-110 BNC-BNC cable*2 (MDO-2000AG only)

Free Download

• OpenWave software; USB driver; LabVIEW driver
