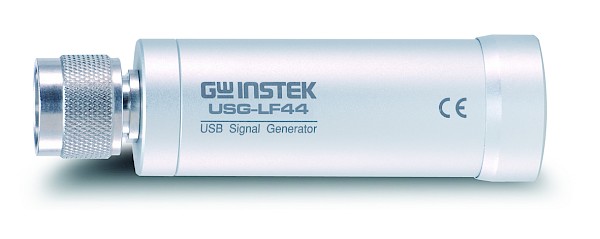

USG-LF44 RF Signal Generator

USG-LF44 34.5MHz - 4.4GHz USB RF Signal Generator

Features

• Frequency Range: 34.5MHz ~ 4400MHz
• Output Power Range: -30dBm ~ 0dBm
• Continuous Wave Signal Without any Modulation
• Support Fixed Frequency, Frequency Sweep, Frequency Hopping & Power Sweep Mode
• -107dBc/Hz Phase Noise @100kHz Offset
• Frequency Resolution: 10kHz
• PC USB Interface Powered and Controlled
• External PC Software Support Different Operating System

Description

GW Instek debuts the brand new USG-Series RF signal generator, which comes with five models to meet users’ requirements and is a pocket-sized, and USB interface compatible RF signal generator with the frequency range from 35MHz to 4400MHz. The USG-Series provides continuous wave (CW) signal outputs without any signal modulation function. The built-in electronic attenuator of the USG-Series allows an adjustable power range from -30dBm to 0dBm. The USG-Series has several operational modes including fixed frequency, frequency sweep, frequency hopping, and power sweep. The USB-Series RF signal generator, with the frequency bandwidth limitation, provides lower harmonic output performance.

Accessories

• USB cable, CD-ROM with USG software, GSP-730 PrimaryRF software and user manual

Optional Accessories

• ADP-003, 50 Ohm N type (female) to SMA (female) Adapter
• GTL-303, 50 Ohm SMA RF cable (600mm)
