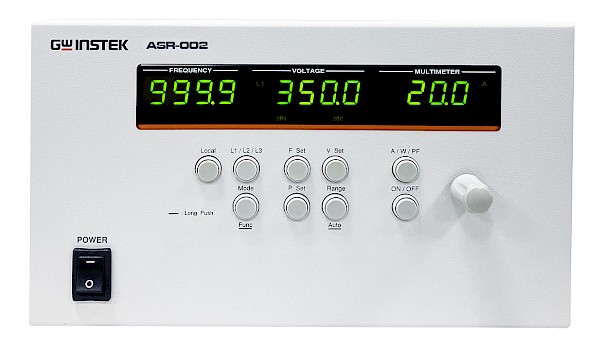

ASR-002

• Accessory for ASR-3000 Series Programmable AC/DC Power Source

Description

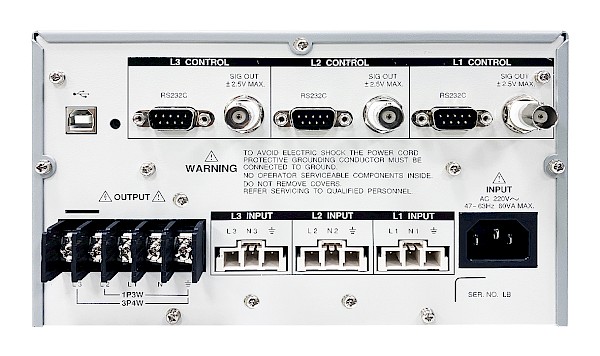

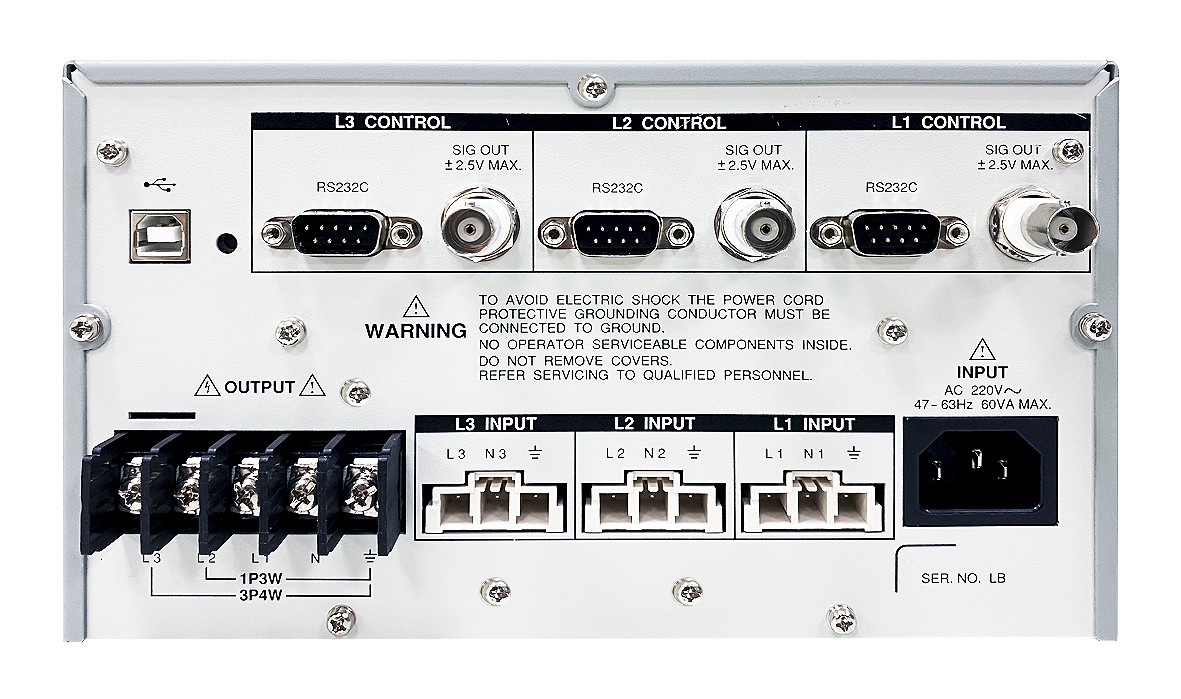

• External Three Phase Control Unit for 1P2W, 1P3W, 3P4W output

Key Information

• *Functions of ASR-Series are limited when ASR-Series applied to ASR-002
• 1) No DC Output( 100% of Rated Power).
• 2) Measurement Items: only current(A), power(W) and PF for each phase.
• 3) No voltage and current Harmonic Analysis(THDv, THDi)
• 4) No Remote Sensing Capability
• 5) No Arbitrary Waveform Function
• 6) No Sequence and Simulation Function( up to 10 sets)
• 7) Interface: only support USB
• 8) Not supported Built-in External Control I/O
• 9) No memory Function( up to 10 sets)
• 10) No LAN port(Built-in Web Server)
