GDM-500 Series hand-held DMM

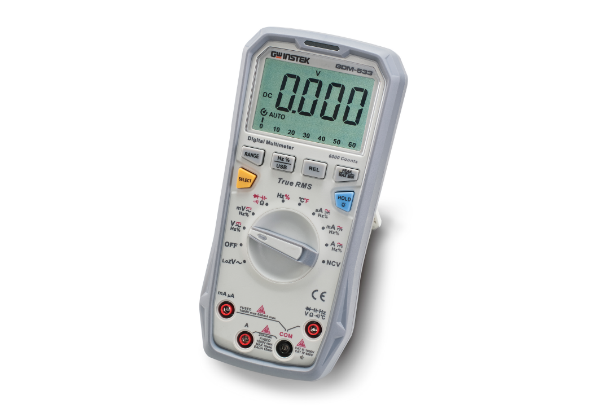

GDM-533 :6000-Count Hand-Held DMM with True RMS Measurement and USB Interface

The GDM-500 Series hand-held DMM is a compact, high precision, battery operated multimeter designed to meet the application requirements of service engineers. The GDM-500 series design is driven by mobile-oriented features: automatic power-off to preserve battery life, a large backlight display for crisp viewing, a rotary selector and push buttons to ease operation, and NCV (Non-Contact Voltage) function for outdoor use.

The basic functions of the Series match the extensive functionalities of bench-top multimeters: fuse-protected current input, true RMS for accurate AC measurements, Audible/Visual Alarm when Overload, Auto ranging, Duty cycle and Relative mode. The compact, reliable and economical GDM-500 Series is ideal for engineers.

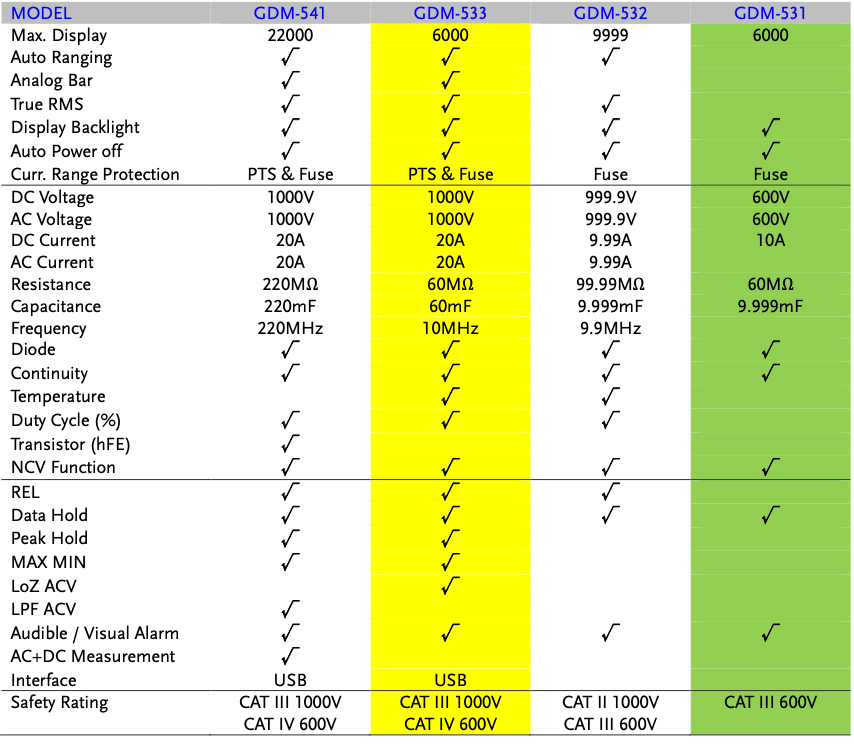

Features

• Auto Ranging (GDM-541/533/532)
• True RMS (GDM-541/533/532)
• Analog Bar (GDM-541/533)
• USB (GDM-541/533)
• Display Backlight (GDM-541/533/532/531)
• NCV Function (GDM-541/533/532/531)
• Audible / Visual Alarm (GDM-541/533/532/531)
• AC+DC Voltage (GDM-541)
• LPF ACV (GDM-541)
• hFE Test (GDM-541)
• LoZ ACV (GDM-533)

Included Accessories

• User manual, Test leads, Battery,
• USB cable & Adapter socket (GDM-541/533 only),
• K-type thermocouple (GDM-533/532 only)
