Product Introduction

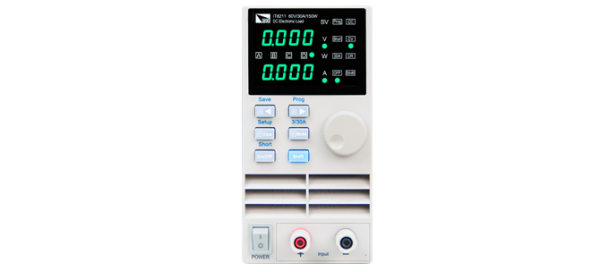

IT8211 series economical electronic load, with the highest cost/performance ratio and small size, they are widely used in production testing lines and maintainance lines etc. Resolution 1mV/1mA ensures the accurate measurement result. IT8211 series has programmable performance, and can quickly recall 4 * 40 group memory data, panel function keys and display interface is clear, provide customers with simple operation program, easy and fast to complete a variety of complex tests. The series has CV, CC and CR mode, and short circuit test function, it is the most cost-effective electronic load products.

Product Model List

Model	Voltage	Current	Power	Resolving	Accuracy	Interface	Size
IT8211	60V	30A	150W	1mV/1mA	±(0.05%+0.1%FS)	——	88mmW*175mmH*282mmD

Features

• Digital controlling electronic load
• LED display
• With fast rotary encoder input
• 19-inch standard cabinet can be installed
• Three operating modes: CV / CC / CR
• 4 * 40 group memory capacity can be quickly recalled
• Switch high and low current

Functions and Advantages

Wider output range Under the same power range, IT8211 series has wider voltage/current range.

Options & Accessories

CD (accessory) With user manual etc. AC power cord (accessory) IT-E152 (Optional) Rack mount kit IT-E30312-YY (Optional) 30A/1.2m/Y terminal etc. IT-E30320-YY (Optional) 30A/2m/Y terminal etc.
