Product Introduction

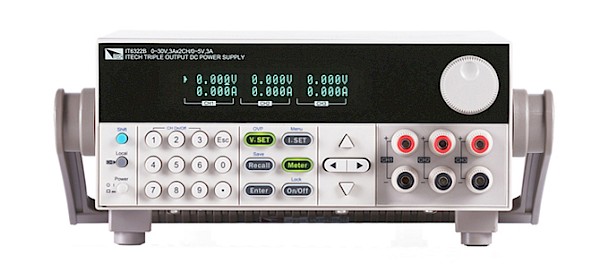

IT6300 series is high-performance programmable triple channels DC power supply, each output voltage and current can be set from 0 to maximum rated output.This series provides series connection, parallelconnectionand synchronous functions ofchannel, which offer multi-purpose solutions forcustomerstest.IT6300 seriesis with high resolution1mV / 1mAand remote sense function, which make the test more accurate. Withbuilt-in standard USB / RS232 communication interface,IT6300 seriesgreatly enhance the communication speed, and customersalsocanadjust the digital step value byusing the cursorto to facilitate the operation.

Product Model List

Model	Voltage	Current	Power	Resolving	Accuracy	Interface	Size
IT6302	CH1:30V；	CH1:3A；	CH1:90W；	10mV/1mA	≤0.06%+20mV/ ≤0.2%+10mA	optional RS232/USB	2U half rack
	CH2:30V；	CH2:3A；	CH2:90W；
	CH3:5V；	CH3:3A；	CH3:15W；
IT6322	CH1:30V；	CH1:3A；	CH1:90W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+5mA	optional RS232/USB/GPIB	2U half rack
	CH2:30V；	CH2:3A；	CH2:90W；
	CH3:5V；	CH3:3A；	CH3:15W；
IT6322A	CH1:30V；	CH1:3A；	CH1:90W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+5mA	RS232/USB	2U half rack
	CH2:30V；	CH2:3A；	CH2:90W；
	CH3:5V；	CH3:3A；	CH3:15W；
IT6322B	CH1:30V；	CH1:3A；	CH1:90W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+5mA	RS232/USB/GPIB	2U half rack
	CH2:30V；	CH2:3A；	CH2:90W；
	CH3:5V；	CH3:3A；	CH3:15W；
IT6322C	CH1:30V；	CH1:3A；	CH1:90W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+5mA	LAN/USB	2U half rack
	CH2:30V；	CH2:3A；	CH2:90W；
	CH3:5V；	CH3:3A；	CH3:15W；
IT6332A	CH1:30V；	CH1:6A；	CH1:180W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+8mA	RS232/USB	2U half rack
	CH2:30V；	CH2:6A；	CH2:180W；
	CH3:5V；	CH3:3A；	CH3:15W；
IT6332B	CH1:30V；	CH1:6A；	CH1:180W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+8mA	RS232/USB/GPIB	2U half rack
	CH2:30V；	CH2:6A；	CH2:180W；
	CH3:5V；	CH3:3A；	CH3:15W；
IT6332C	CH1:30V；	CH1:6A；	CH1:180W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+8mA	LAN/USB	2U half rack
	CH2:30V；	CH2:6A；	CH2:180W；
	CH3:5V；	CH3:3A；	CH3:15W；
IT6333A	CH1:60V；	CH1:3A；	CH1:180W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+5mA	RS232/USB	2U half rack
	CH2:60V；	CH2:3A；	CH2:180W；
	CH3:5V；	CH3:3A；	CH3:15W；
IT6333B	CH1:60V；	CH1:3A；	CH1:180W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+5mA	RS232/USB/GPIB	2U half rack
	CH2:60V；	CH2:3A；	CH2:180W；
	CH3:5V；	CH3:3A；	CH3:15W；
IT6333C	CH1:60V；	CH1:3A；	CH1:180W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+5mA	LAN/USB	2U half rack
	CH2:60V；	CH2:3A；	CH2:180W；
	CH3:5V；	CH3:3A；	CH3:15W；

Features

• The most economical high performance completely digital-control power supplies
• 10mV/1mA high accuracy and resolution
• Lower noise and ripple
• CV/CC modes
• Minimum size to save space
• LED display
• OCP/OVP/OTP protection
• Full scale 60V/5A,resolution 10mV/1mA,no need to switch
• On/off controlling

Functions and Advantages Widest voltage and current utilization IT6700 series can control voltage and current automatically.The power ratio can be up to 3 times.For instance,one IT6720 can substitute previous 60V*1.6A/32/*3A/20V*5A 3 kinds of models to save your cost.

Options & Accessories

CD (accessory) With user manual etc. AC power cord (accessory) IT-E152 (Optional) 19'' Rack mount kit
