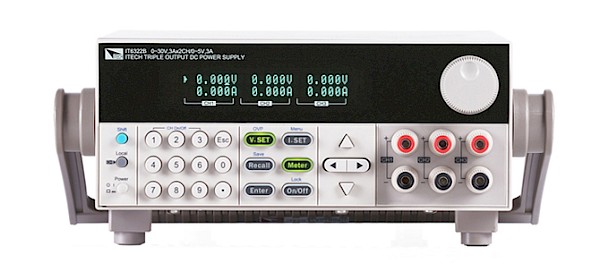

Product Introduction

IT6300 series is high-performance programmable triple channels DC power supply, each output voltage and current can be setfrom0 tomaximum rated output.This series provides series connection, parallelconnectionand synchronous functions ofchannel, which offer multi-purpose solutions forcustomerstest.IT6300 seriesis with high resolution1mV / 1mAand remote sense function, which make the test more accurate. Withbuilt-in standard USB / RS232 communication interface,IT6300 seriesgreatly enhance the communication speed, and customersalsocanadjust the digital step value byusing the cursorto to facilitate the operation.

Product Model List

Model	Voltage	Current	Power	Resolving	Accuracy	Interface	Size
IT6302	CH1:30V；	CH1:3A；	CH1:90W；	10mV/1mA	≤0.06%+20mV/ ≤0.2%+10mA	optional RS232/USB	2U half rack
	CH2:30V；	CH2:3A；	CH2:90W；
	CH3:5V ；	CH3:3A；	CH3:15W；
IT6322	CH1:30V；	CH1:3A；	CH1:90W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+5mA	optional RS232/USB/GPIB	2U half rack
	CH2:30V；	CH2:3A；	CH2:90W；
	CH3:5V ；	CH3:3A；	CH3:15W；
IT6322A	CH1:30V；	CH1:3A；	CH1:90W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+5mA	RS232/USB/GPIB	2U half rack
	CH2:30V；	CH2:3A；	CH2:90W；
	CH3:5V ；	CH3:3A；	CH3:15W；
IT6322B	CH1:30V；	CH1:3A；	CH1:90W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+5mA	RS232/USB/GPIB	2U half rack
	CH2:30V；	CH2:3A；	CH2:90W；
	CH3:5V ；	CH3:3A；	CH3:15W；
IT6322C	CH1:30V；	CH1:3A；	CH1:90W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+5mA	LAN/USB	2U half rack
	CH2:30V；	CH2:3A；	CH2:90W；
	CH3:5V ；	CH3:3A；	CH3:15W；
IT6332A	CH1:30V；	CH1:6A；	CH1:180W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+8mA	RS232/USB	2U half rack
	CH2:30V；	CH1:6A；	CH1:180W；
	CH3:5V ；	CH3:3A；	CH3:15W；
IT6332B	CH1:30V；	CH1:6A；	CH1:180W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+8mA	RS232/USB/GPIB	2U half rack
	CH2:30V；	CH1:6A；	CH1:180W；
	CH3:5V ；	CH3:3A；	CH3:15W；
IT6332C	CH1:30V；	CH1:6A；	CH1:180W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+8mA	LAN/USB	2U half rack
	CH2:30V；	CH1:6A；	CH1:180W；
	CH3:5V ；	CH3:3A；	CH3:15W；
IT6333A	CH1:60V；	CH1:3A；	CH1:180W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+5mA	RS232/USB	2U half rack
	CH1:60V；	CH2:3A；	CH1:180W；
	CH3:5V ；	CH3:3A；	CH3:15W；
IT6333B	CH1:60V；	CH1:3A；	CH1:180W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+5mA	RS232/USB/GPIB	2U half rack
	CH1:60V；	CH2:3A；	CH1:180W；
	CH3:5V ；	CH3:3A；	CH3:15W；
IT6333C	CH1:60V；	CH1:3A；	CH1:180W；	1mV/1mA	≤0.03%+10mV/ ≤0.1%+5mA	LAN/USB	2U half rack
	CH1:60V；	CH2:3A；	CH1:180W；
	CH3:5V ；	CH3:3A；	CH3:15W；

Features

• Triple output voltage, all are adjustable.
• Optional serial/ parallel/ track mode*1
• The voltage and current for each channel can be displayed at the same time
• Small size of 1/2 2U
• VFD display
• Function keys with LED light
• Adjust the digital step value via cursor
• Output switch control
• High accuracy, high resolution and high stability
• Remote measurement function, compensation online pressure drop*2
• Comprehensive protection function
• Intelligent fan control, reduce noise
• Built-in RS232/USB communication interface for part of the models

*1:Table 1 for details *2: IT6300A/B Functions and Advantages Track mode CH1 and CH2, CH2 and CH3, or all three channels to be set as track mode, if any one channel parameter changed, the corresponding parameters of the other channels will also change in direct proportion. For example, set up voltage and current of CH1 and CH2 to be CH1:4V, 1A; CH2:8V, 2A. Set CH1 and CH2 in track mode, in output off and Meter state.

Options & Accessories

IT-E30110-AB (Optional) 10A/1m/Alligator clip - Banana. IT-E151A (Optional) 19'' Rack mount kit IT-E123 (Optional) RS485 optical isolation comm. IT-E135 (Optional) GPIB optical isolation comm. IT-E122 (Optional) USB optical isolation comm. IT-E121 (Optional) RS232 optical isolation comm. IT-E30110-BB (Optional) 10A/1m/Banana plug - Banana. IT-E30110-BY (Optional) 10A/1m/Banana plug - Y terminal USB For USB port communication CD (accessory) With user manual and comm. AC power cord (accessory) IT-E151 (Optional) 19'' Rack mount kit
