Product Introduction

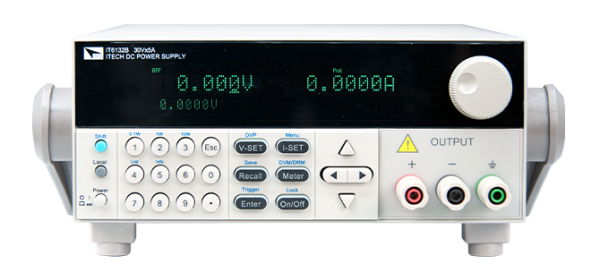

IT6100B series (86 ~ 1200W) high speed high precision programmable DC power supply is withultra high voltage rising time, the fastestfull load up to 500us, resolution up to 0.1mV / 0.01mA, the latest output waveform priority mode allows rising waveform ofvoltage or current  is with high-speed and no overshoot, which is widely used in power modules and other high-precision test occasions. IT6100B has built-in standard USB / RS232 communication interface and the panel supports List programming, which canprovide multi-purpose solutionaccording to customer design and testing demands, easy to use.

Product Model List

Model	Voltage	Current	Power	Resolving	Accuracy	Interface	Size
IT6121B	20V	5A	100W	0.1mV/0.01mA	±0.02%+3mV/ ±0.05%+2mA	RS232/USB	½ 2U
IT6122B	32V	3A	96W	0.1mV/0.01mA	±0.02%+3mV/ ±0.05%+2mA	RS232/USB	½ 2U
IT6123B	72V	1.2A	86.4W	0.1mV/0.01mA	±0.02%+5mV/ ±0.05%+1mA	RS232/USB	½ 2U
IT6132B	30V	5A	150W	0.1mV/0.01mA	±0.02%+3mV/ ±0.05%+2.5mA	RS232/USB	½ 2U
IT6133B	60V	2.5A	150W	0.1mV/0.01mA	±0.02%+5mV/ ±0.05%+1.5mA	RS232/USB	½ 2U
IT6162B	20V	50A	1000W	1mV/1mA	≤0.02%+2mV/ ≤0.05%+15mA	RS232/USB	2U
IT6164B	Range1:30V；	Range1:40A；	Range1:1200W；	1mV/1mA	≤0.02%+5mV/ ≤0.05%+15mA	RS232/USB	2U
	Range2:60V；	Range2:20A；	Range2:1200W；	1mV/1mA	≤0.02%+5mV/ ≤0.05%+15mA	RS232/USB	2U

Features

• Output linear adjustment, high speed reliable, low noise
• High accuracy and resolution
• High voltage rising edge
• Built-in 5½ digital voltmeter and Ohmmeter
• Memory capacity: 100 groups
• List mode
• Timer function (0.01~60000S)
• Remote sense interface to compensate line voltage
• Built-in RS232/USB interface and support SCPI protocol

Functions and Advantages

High voltage rise speed Comparing with general high speed power supplies, IT6100B series power supplies reduce their ripple and noise to the lowest level.Their high voltage rise speed (<20mS) suits for all high speed and precise testing occasions. Digital voltage ohmmeter IT6100B series has built-in precision digital voltage ohmmeterDigital ohmmeter: Provide four-wire method to measure resistance, measurement range: 0 ~ 1KΩ Digital voltmeter: A 5½ voltmeter is provided to measure the external voltage, measurement range: 0 ~ 40V

Options & Accessories

USB For USB port communication CD (accessory) With user manual and communica... AC power cord (accessory) IT-E151A (Optional) 19'' Rack mount kit IT-E151 (Optional) 19'' Rack mount kit IT-E30110-AB (Optional) 10A/1m/Alligator clip - Banana... IT-E30110-BB (Optional) 10A/1m/Banana plug - Banana pl... IT-E30110-BY (Optional) 10A/1m/Banana plug - Y termina... IT-E30312-YY (Optional) 30A/1.2m/Y terminal, a pair of... IT-E30320-YY (Optional) 30A/2m/Y terminal, a pair of r... IT-E30615-OO (Optional) 60A/1.5m/round terminal, a pai...
