Product Introduction

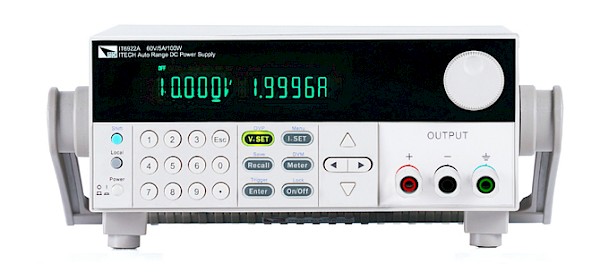

IT6900A series wide range programmable power supply have built-in standard RS232, USB, RS485 and analog interface (RS485 and analog interface are just for IT6900B), support SCPI protocol, facilitate remote control, industrial PLC control and the formation of intelligent test platform. Remote compensation terminals avoid the problem of inaccurate testing caused by voltage drop on the wire.Low ripple, low noise and built-in digital voltmeter make IT6900A easy to do external measurement.IT6900A can be widely applied in DC-DC power supply module, battery charging and sensors and other test areas.

Product Model List

Model	Voltage	Current	Power	Resolving	Accuracy	Interface	Size
IT6922A	60V	5A	100W	1mV/0.1mA	≤0.03%+5mV/ ≤0.1%+5mA	RS232/USB	½ 2U
IT6932A	60V	10A	200W	1mV/1mA	≤0.03%+5mV/ ≤0.1%+10mA	RS232/USB	½ 2U
IT6933A	150V	5A	200W	1mV/1mA	≤0.03%+5mV/ ≤0.1%+10mA	RS232/USB	½ 2U
IT6942A	60V	15A	360W	1mV/0.1mA	≤0.03%+5mV/ ≤0.1%+15mA	RS232/USB	½ 2U
IT6952A	60V	25A	600W	1mV/1mA	≤0.03%+5mV/ ≤0.1%+25mA	RS232/USB	½ 2U
IT6953A	150V	10A	600W	1mV/1mA	≤0.03%+20mV/ ≤0.1%+25mA	RS232/USB	½ 2U
IT6922B	60V	5A	100W	1mV/0.1mA	≤0.03%+5mV/ ≤0.1%+5mA	RS232/USB/RS485/External analog	½ 2U
IT6932B	60V	10A	200W	1mV/1mA	≤0.03%+5mV/ ≤0.1%+10mA	RS232/USB/RS485/External analog	½ 2U
IT6933B	150V	5A	200W	1mV/1mA	≤0.03%+5mV/ ≤0.1%+10mA	RS232/USB/RS485/External analog	½ 2U
IT6942B	60V	15A	360W	1mV/1mA	≤0.03%+5mV/ ≤0.1%+15mA	RS232/USB/RS485/External analog	½ 2U
IT6952B	60V	25A	600W	1mV/1mA	≤0.03%+5mV/ ≤0.1%+25mA	RS232/USB/RS485/External analog	½ 2U
IT6953B	150V	10A	600W	1mV/1mA	≤0.03%+20mV/ ≤0.1%+25mA	RS232/USB/RS485/External analog	½ 2U

Features

• VFD display
• Adjust voltage and current via knob or numerical key pad
• High accuracy and high resolution
• Adjust digital step value via cursor
• Output according to voltage and current programed
• Output Timer(0.1 ~ 99999.9S) Function
• Low ripple and low noise
• Remote Sense Function
• OVP/OCP/OTP protection functions
• Intelligent fan control
• Rich SCPI instructions to facilitate the formation of intelligent test platform
• Support front and rear panel output
• Optional external analog function

Functions and Advantages

Remote sense function In order to avoid the pressure drop caused by the length of the wire connecting the load, the remote test allows measurement directly on the terminal of the test object to improve the measurement accuracy. S +, S is the remote measurement terminal, +, - is the output positive and negative terminals. When using the remote measurement function, it is necessary to disconnect the wires connected to the "+, -" terminals and lead S +, S to the test object. List function Auto Range IT6900A series power supply has adopted Auto-range technology. One unit could replace multiple units with different specifications.Take IT6932A(60V/10A/200W),as an example,the user could used as a 60V/3.3A/200W instruments and also a 20V/10A/200W unit.

Options & Accessories

CD (accessory) With user manual and communica... USB For USB port communication AC power cord (accessory) IT-E151A (Optional) 19'' Rack mount kit IT-E30110-AB (Optional) 10A/1m/Alligator clip - Banana... IT-E30110-BB (Optional) 10A/1m/Banana plug - Banana pl... IT-E30110-BY (Optional) 10A/1m/Banana plug - Y termina... IT-E30312-YY (Optional) 30A/1.2m/Y terminal, a pair of... IT-E30320-YY (Optional) 30A/2m/Y terminal, a pair of r...
