Product Introduction

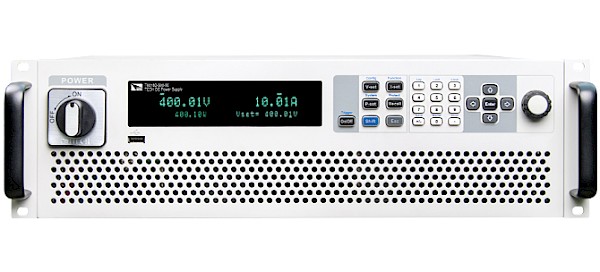

IT6000D, single channel output programmable DC power supply, is applicable in laboratories and automatic test system to provide high-power and stable DC supply. The feature of autoranging output enables a wide range of voltage and current combinations at full power, unprecedentedly flexible. IT6000D Series has wide range of applications and its single unit provides power range of 6kW to 144kW, current up to 2040A, as well as its voltage up to 2250V. Besides, IT6000D provides multi built-in communication interfaces to simplify and accelerate the testing development. The compact 3U design saves rack space. Multi units of the same model can be paralleled easily to have higher power and the maximum power can reach up to 1.152 MW.

Product Model List

Model	Voltage	Current	Power	Resolving	Accuracy	Interface	Size
IT6005D-80-150	80V	150A	5kW	0.001V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6010D-80-300	80V	300A	10kW	0.001V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6015D-80-450	80V	450A	15kW	0.001V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6030D-80-900	80V	900A	30kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	6U
IT6045D-80-1350	80V	1350A	45kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6060D-80-1800	80V	1800A	60kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6075D-80-2040	80V	2040A	75kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6090D-80-2040	80V	2040A	90kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6105D-80-2040	80V	2040A	105kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6120D-80-2040	80V	2040A	120kW	0.001V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6006D-300-75	300V	75A	6kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6012D-300-150	300V	150A	12kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6018D-300-225	300V	225A	18kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6036D-300-450	300V	450A	36kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	6U
IT6054D-300-675	300V	675A	54kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6072D-300-900	300V	900A	72kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6090D-300-1125	300V	1125A	90kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6108D-300-1350	300V	1350A	108kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6126D-300-1575	300V	1575A	126kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6144D-300-1800	300V	1800A	144kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6006D-500-40	500V	40A	6kW	0.01V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6012D-500-80	500V	80A	12kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6018D-500-120	500V	120A	18kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6036D-500-240	500V	240A	36kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	6U
IT6054D-500-360	500V	360A	54kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6072D-500-480	500V	480A	72kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6090D-500-600	500V	600A	90kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6108D-500-720	500V	720A	108kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6126D-500-840	500V	840A	126kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6144D-500-960	500V	960A	144kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6006D-800-25	800V	25A	6kW	0.01V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6012D-800-50	800V	50A	12kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6018D-800-75	800V	75A	18kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6036D-800-150	800V	150A	36kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	6U
IT6054D-800-225	800V	225A	54kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6072D-800-300	800V	300A	72kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6090D-800-375	800V	375A	90kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6108D-800-450	800V	450A	108kW	0.01V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6126D-800-525	800V	525A	126kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6144D-800-600	800V	600A	144kW	0.01V/0.1A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6018D-1500-401	500V	40A	18kW	0.1V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6036D-1500-801	500V	80A	36kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	6U
IT6054D-1500-1201	500V	120A	54kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6072D-1500-160	1500V	160A	72kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6090D-1500-200	1500V	200A	90kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6108D-1500-240	1500V	240A	108kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6126D-1500-280	1500V	280A	126kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6144D-1500-320	1500V	320A	144kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6018D-2250-25	2250V	25A	18kW0.1V/0.001A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	3U
IT6036D-2250-50	2250V	50A	36kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	6U
IT6054D-2250-75	2250V	75A	54kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6072D-2250-100	2250V	100A	72kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	15U
IT6090D-2250-125	2250V	125A	90kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6108D-2250-150	2250V	150A	108kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6126D-2250-175	2250V	175A	126kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U
IT6144D-2250-200	2250V	200A	144kW	0.1V/0.01A	≤0.02%+0.02%FS/≤0.1%+0.1%FS	USB/CAN/LAN/digital IO interface, optional GPIB/Analog&RS232 interfaces	27U

Features

• Single unit provides voltage of 80V-2250V, current of 30-2040A, power of 6kW -144kW, and 73 standard models are available
• Master-slave parallel, the power can be paralleled up to 1.152 MW
• Current is up to 2040A by paralleling
• The adoption of high frequency switching structure supports the automatic switching between CV and CC
• Provides various protections: OVP, OCP, OPP, OTP, protection of power failure and UVP
• Supports data recording function, can continuously record the Max, Min, Average values of output voltage and current, and it can automatically execute data by sequence
• Power efficiency up to 95%
• High power density of 18kW in 3U
• Supports external data recording function, internal buffing, and the PC will periodically read data from the power supply
• Built-in communication interfaces of USB/CAN/LAN/Digital IO, and optional interfaces of GPIB, Analog and RS232
• Supports SCPI protocol, built-in Web server

Functions and Advantages

3U/18kW High power density High power density of 18kW in 3U size, IT6000D series DC power supply has good capability of low output ripple and noise, power grid disturbance adjustment, load regulation and fast transient response. Standalone unit with voltage range of 80V-2250V, current of 30A-510A. Its wide range allows the devices to be used in every testing step of R&D, products testing and production. Output features Compare with the conventional design, the IT6000D has much better output range to satisfy various requirement. Featured as its wide auto range output, it can cover more applications. One standalone unit equals to 3-5 traditional power supply and 3units equals to 10-13 traditional power supply. This makes it easier to build a system and save space at the same time.

Options & Accessories

AC power cord (accessory) USB straight wire (accessory) Used for USB port communicatio... IT-E168/169(Optional) Parallel optical fiber kit Sin... IT-E165A-250/400/500(Optional)... Anti-reverse connection module... IT-E165B (Optional) Anti-electromotive force modul... IT-E167(Optional) RS232/Analog communication car... IT-E166(Optional) GPIB IT cabinet(Optional) IT cabinet 15U/27U/37U AC power cord(Optional) AC power cord, 5m IT-E33620-OO(Optional) 360A/2m/Round terminal, a pair... IT-E32420-OO(Optional) 240A/2m/Round terminal, a pair... IT-E32410-OO(Optional) 240A/1m/Round terminal, a pair... IT-E31220-OO(Optional) 120A/2m/Round terminal, a pair... IT-E30615-OO(Optional) 60A/1.5m/Round terminal, a pai... IT-E30312-YY(Optional) 30A/1.2m/Y terminal, a pair of... IT-E30320-YY(Optional) 30A/2m/Y terminal, a pair of r...
