Power-Trust

3 in One AC POWER SOURCE: Frequency Converter, Voltage Regulator, Voltage Stabilizer The Power-Trust Series is not equipped with any transformer and is available only in SS and TS versions. Moreover, the Voltage regulation function is limited between 2Vac and 300Vac. Nevertheless, Power-Trust upsides over Power-Boost are the following:

• Lighter
• Higher full load efficiency (≥96% vs ≥93%)
• Better heat dissipation

Description

• Not equipped with transformer

Phases working modes:

• SS (Single-phase input, Single-phase output)
• TS (Three-phase input, Single-phase output)

Standard Available Power:

• SS (1.5kVA – 3kVA – 5kVA – 7.5 kVA)
• TS (10kVA – 17.5kVA – 25 kVA)

• 3 Upgrade Packages available (Basic, Deluxe, Premium)

Mechanical:

• Rack 19″ 3U (SS) which comes with removable handles so that it can be used as Desk Box as well. Housing powder coated in MCB blue navy colour.

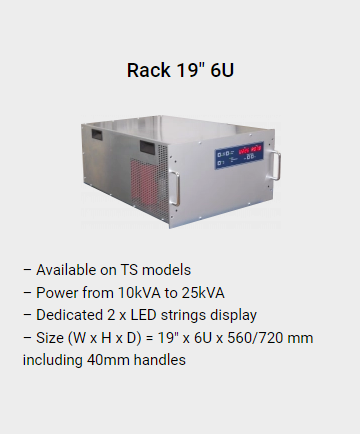

• Rack 19″ 6U (TS) which comes with removable handles so that it can be used as Desk Box as well.

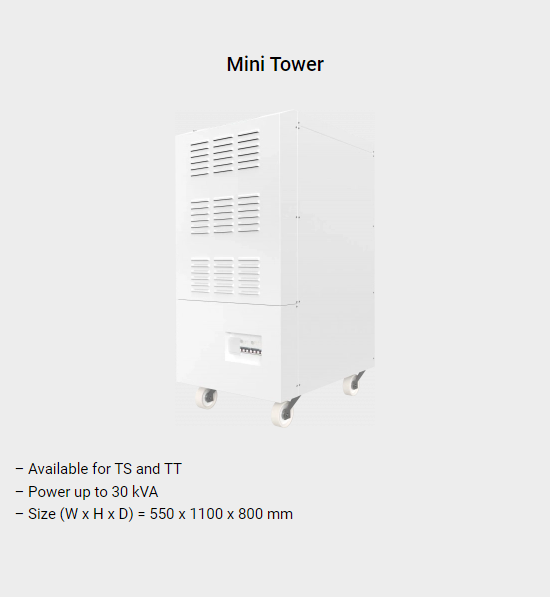

• Mini Tower

Control Panels:

• LCD Display 2×16 along with potentiometer on Rack 19″ in SS Basic Package
• Wide LCD Display 4×40 along with command buttons on Rack 19″ in SS Deluxe and Premium packages and Mini Towers in all the packages
• 2 x LED strings on rack 19″ 6U in TS (all packages).
• 7″ Touchscreen LCD along with encoder (optional only on the SS Premium package)

Communication Interfaces (Remote Control):

• Physical Interfaces: RS-232, Ethernet, 12 poles I/O
• Communication protocols: SCPI (over RS-232 and Ethernet), proprietary ASCII with optional SCPI adapter (only on Rack 19″ TS models).
• LabView Drivers

STANDARD FEATURES

• Voltage Regulation
• Range 2-300Vac for TS
• Range 2-(V Input – 4Vac) for SS
• Frequency regulation (40-80Hz)
• Current regulation
• Setup of the max Current value
• Available 50Hz, 60Hz and 400Hz quartz output frequencies

POSSIBLE CUSTOMIZATIONS

• TT configuration with maximum Voltage Output equal to “Grid Voltage Value minus 4V”
• Fixed Voltage output value
• Different frequency input range
• Broader Frequency output range (up to 400Hz)
• Device adaption to Current generator up to the nominal Current
• Device adaption to ST working mode (input Single-Phase, output Three-Phase)

APPLICATIONS

This AC/AC Power Source can cover a wide arrange of applications such as household appliances, automotive test benches, electric motors, automation, electronics, medical equipment, lighting, maritime, aviation, power grid, industry and many more. In conclusion, Power-Trust is a multi functions Power Electronics device: Frequency Converter, Voltage Regulator, Voltage Stabilizer, Current Regulator. This Power Supply can be customized based on your specifications, starting from the following options (which are based on input/output phases, available power, control panels etc.)
