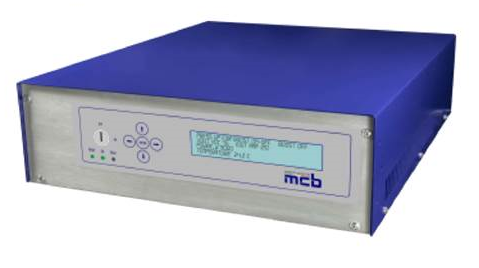

DC Power Supply: the Power-Spin

MCB Electronics has designed and developed a versatile comprehensive customizable AC input DC output power supply: Power-Spin.

Description

• Equipped with isolation autotransformer
• AC input accepted:

Single-Phase (120Vac 50/60Hz – 230/240Vac 50/60Hz)

• Two-Phase (2 x 120Vac 50/60Hz)
• Three-Phase (3 x 208Vac 50/60Hz – 3 x 400Vac 50/60Hz -3 x 480Vac 50/60Hz – 3 x 600Vac 50/60Hz)
• Power range from 1kW to 200kW
• Mechanical: Rack 19″, Towers and Maxi-Towers
• Control Panel: LCD Display 4×40 along with command buttons

Communication Interfaces (Remote Control):

• Physical Interfaces: RS-232, Ethernet
• Communication protocols: SCPI (over RS-232 and Ethernet)
• LabView Drivers

STANDARD FEATURES

• DC Output Current and Voltage regulation
• Boost function: 150% nominal current for 6 seconds
• Electrical cord on the input (AC side) provided for powers up to 8kW included
• Terminal blocks in input and output for models above 8kW power

OPTIONS AND CUSTOMIZATIONS

• Fully customizable according to current and voltage required in output
• Optional automatic AC mains configuration detection
• Optional 2in1 working mode: AC/DC Power Supply and Battery Charger
• Any worldwide input AC mains electricity according to the required specifications provided by the customer
