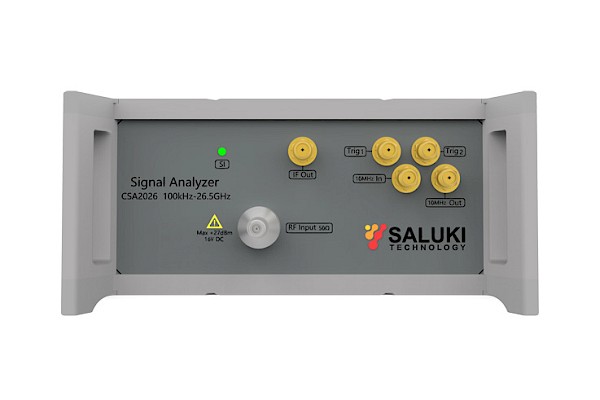

CSA Series Signal Analyzer

Descriptiion

Saluki CSA series signal analyzer reaches the frequency from 100 kHz to 26.5 GHz with a maximum of 40 MHz analysis bandwidth. It can test signal power, frequency, phase, P-1, TOI, OBW, channel power, spurious, ACPR, CCDF, SEM, EVM, and other indicators. It can be used independently or combined with the chassis to form a test system. CSA series signal analyzer is a cost-effective tool for essential signal characterization. Its capabilities provide a solid foundation for testing in general-purpose and educational applications.

Key Features

• Frequency range from 100kHz to 26.5GHz
• Low DANL level to -164dBm @ 1GHz (preamp on)
• 1Hz minimum resolution bandwidth (RBW)
• Fast continuous scanning technology

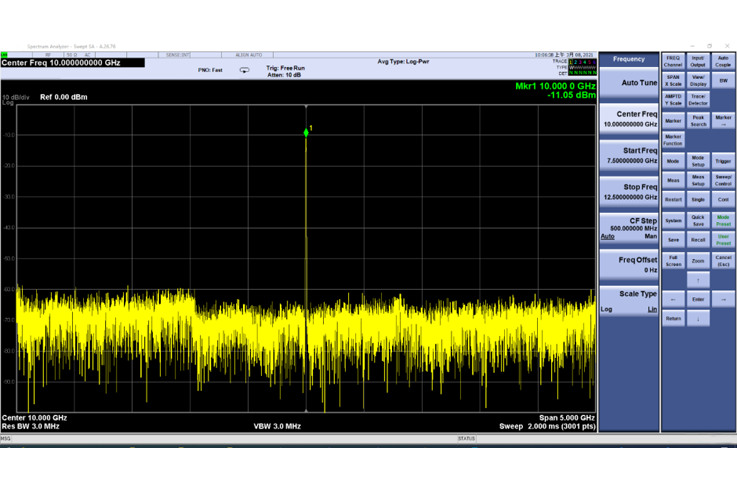

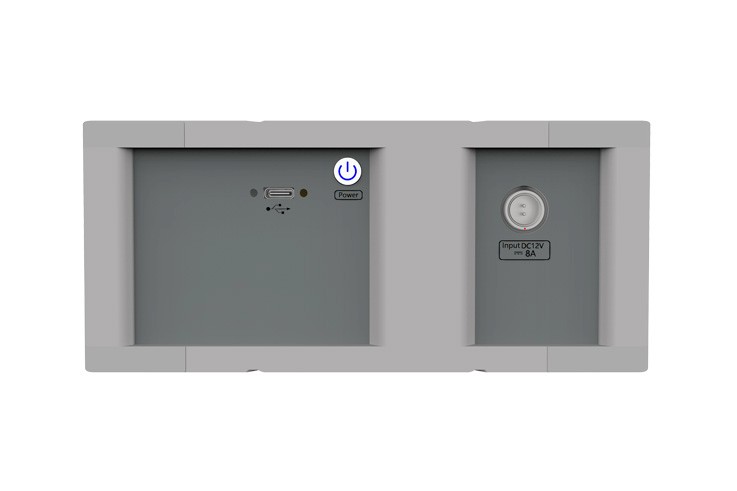

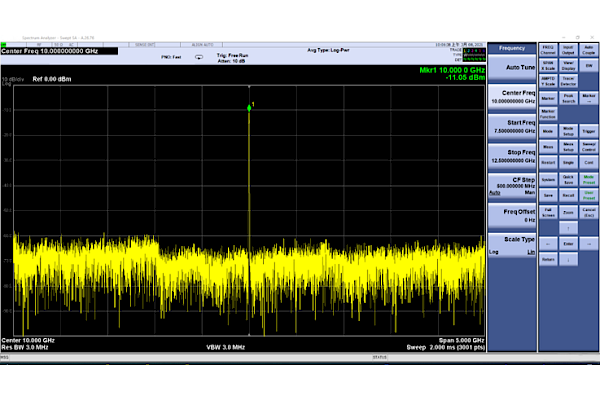

• USB control, independent application software

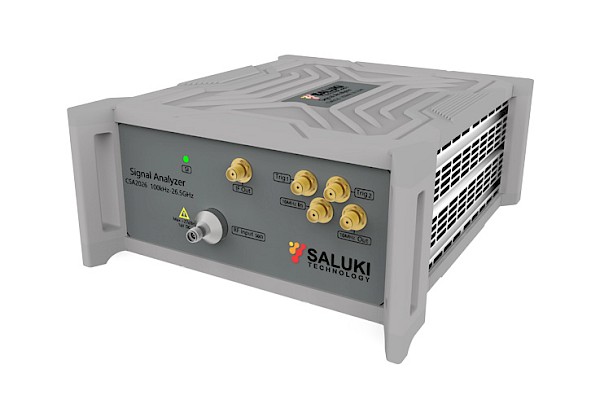

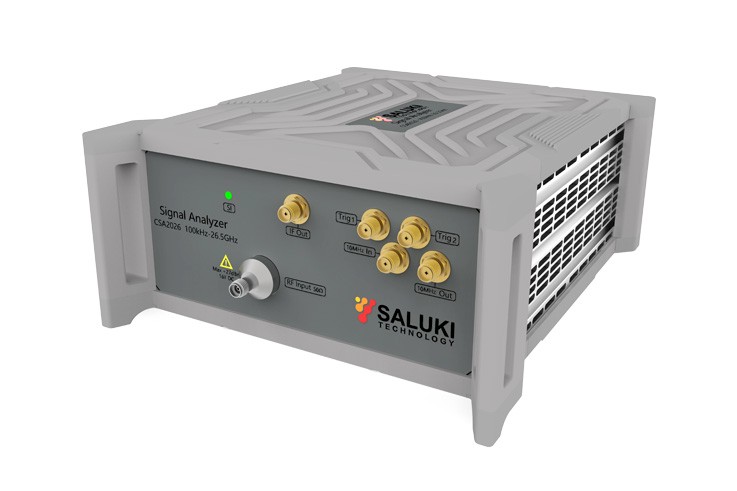

• Small size 175×150×64 mm, easy to carry
• Can be used independently or combined with the chassis to form a test system

Cost-effective Tool for Essential Signal Characterization

• Measuring frequency range: 100 kHz – 26.5 GHz
• Analysis bandwidth: 40 MHz
• DANL: -148 dBm/Hz@1 GHz (LNA off), -164 dBm/Hz@1 GHz (LNA on)
• Measuring range: DANL to +27 dBm
• Frequency resolution (Marker frequency counter): 0.001 Hz
• Phase noise: -106dBc/Hz@10 kHz (CF=1 GHz)
• Spurious: -74 dBc

CSA series USB spectrum analyzer can test signal power, frequency, phase, P-1, TOI, OBW, channel power, spurious, ACPR, CCDF, SEM, EVM, and other indicators.

Options

P26 Pre-amplifier B40 40MHz Analysis Bandwidth / To output real-time signal acquisition data through optical fiber and support signal data output with maximum 40MHz bandwidth. HAS High Resolution Step Attenuator / 0-50dB，2dB step PFR Precision Frequency Reference RTA Real Time Analysis
