82407 Series SA Frequency Extension Module

Description

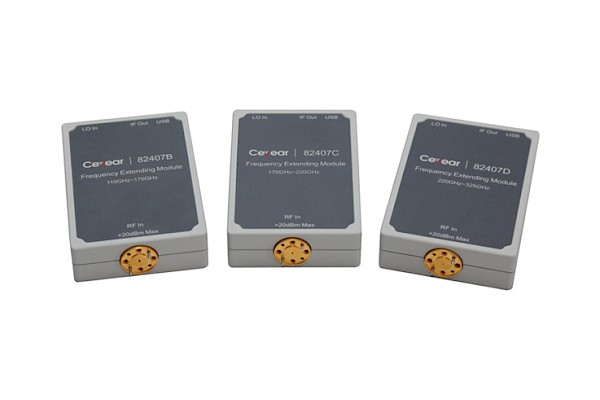

82407 series spectrum analyzer frequency extending module products are designed for millimeter wave spread spectrum measurement of signal/spectrum analyzer. This series frequency extending module can also be used as the front end of millimeter wave signal receiver. The standard rectangle waveguide of corresponding band is used for the input interface of 82407 series frequency extending module. 2.4mm and SMA female coaxial adapters (3.5mm coaxial adapters are used for 82407R LO input and IF output) are used for LO input and IF output respectively.

Key Features

• The average noise level is as low as -140dBm/Hz
• Maximum outline dimension is less than 72mm×26mm×112mm (82407/NB/A/B/C/D), 120mm× 85mm×240mm (82407R)
• The smart USB interface is used to interconnect with the host, so as to enable automatic identification of spread spectrum module and automatic configuration of frequency conversion loss and other functions

Options

Main Machine 82407 Spectrum Analyzer Frequency Extending Module / Frequency range: 50 GHz to 75 GHz 82407NB Spectrum Analyzer Frequency Extending Module / Frequency range: 60 GHz to 90 GHz 82407A Spectrum Analyzer Frequency Extending Module / Frequency range: 75 GHz to 110 GHz 82407B Spectrum Analyzer Frequency Extending Module / Frequency range: 110 GHz to 170 GHz 82407C Spectrum Analyzer Frequency Extending Module / Frequency range: 170 GHz to 220 GHz 82407D Spectrum Analyzer Frequency Extending Module / Frequency range: 220 GHz to 325 GHz 82407R Spectrum Analyzer Frequency Extending Module / Frequency range: 325 GHz to 500 GHz Options 82407-H01 : 2.4mm RF test cable / Connect host LO output port and LO input port of frequency extending module (Required option) 82407-H02 : SMA RF test cable / Connect host IF input port and IF output port of frequency extending module (Required option) 82407-H03 : Adapter / 2.4mm to 3.5mm adapter for 82407R
