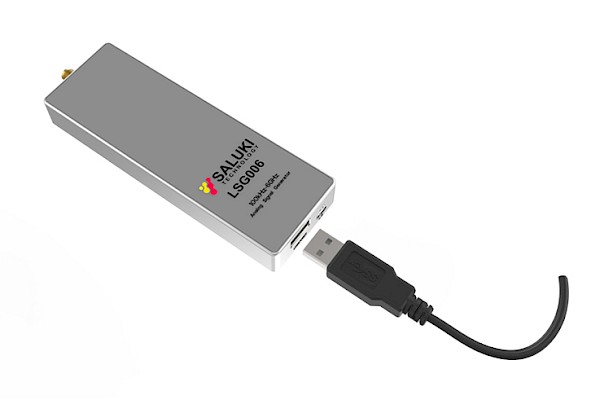

LSG006 Analog Signal Source

Description

LSG006 analog signal source offers 100kHz to 6GHz frequency coverage with 10ms frequency switching speed. It can be used independently or combined with the chassis to form a test system. Saluki LSG series signal source is the cost-effective choice when you need to balance budget and performance. It provides the signals you will need for radar performance evaluation, high-performance receiver test and components parameter test etc..

Key Features

• Frequency range from 100 kHz to 6 GHz
• Frequency resolution: 2Hz
• Harmonic (clutter) suppression: better than 30dBc (60dBc)
• Amplitude dynamic range from -50dBm to +10dBm
• Pulse and FM modulation method

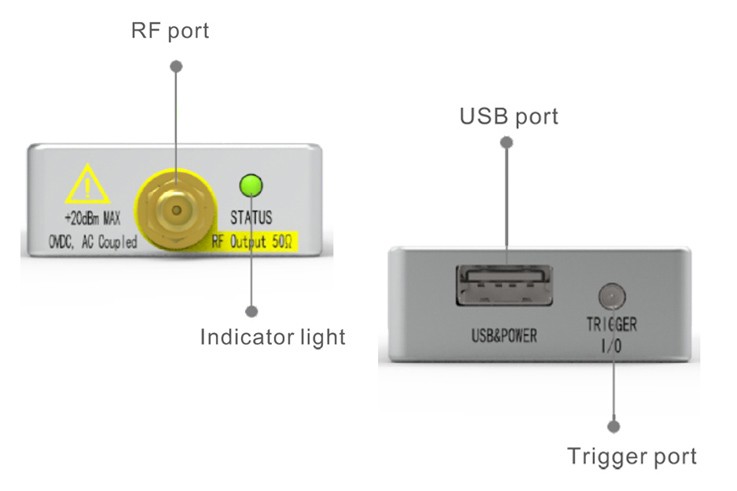

• USB control, independent application
• Ultra-portability (volume 135.5×43×16mm, weight ≤200g), easy to carry
• Can be used independently or combined with the chassis to form a test system

Your Reliable RF&MW Test Equipments

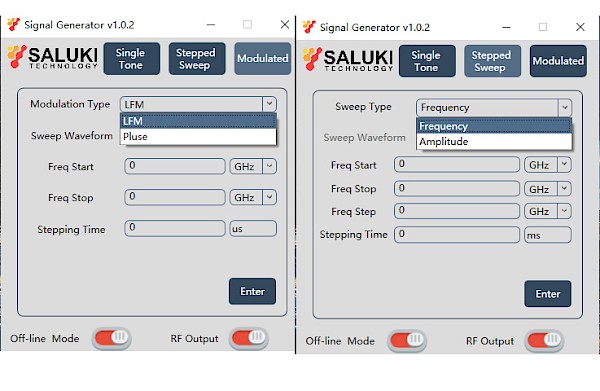

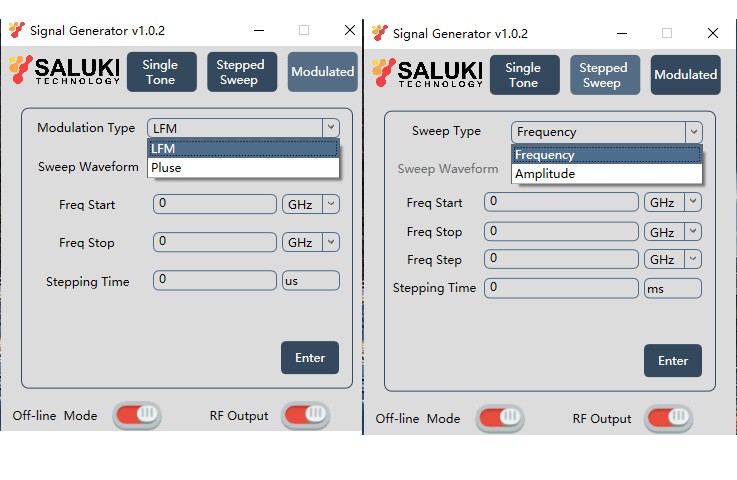

• Convenient and Easy: modular design+PC software
• Quick Combination: miniature chassis + integrated software
• High Performance: benchmarking Keysight performance
• Stable and Reliable: rigorous test + statistical analysis
• Customer Value: cost-effective + high efficiency
• R&D Technology: calibration test + LO technology + signal processing + channel technology
