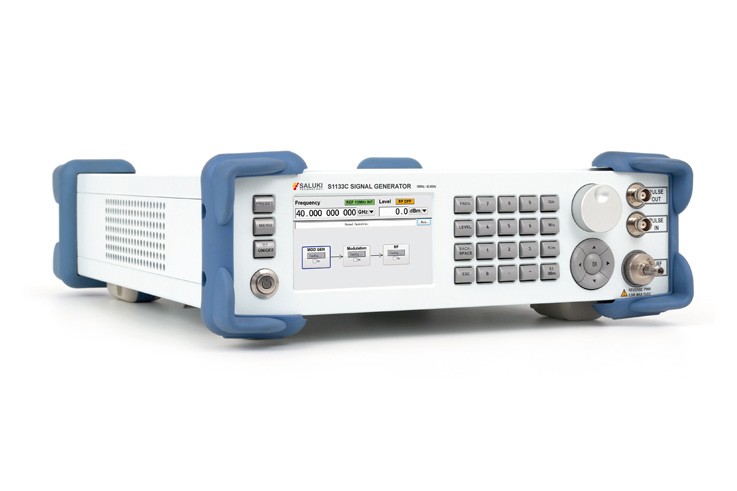

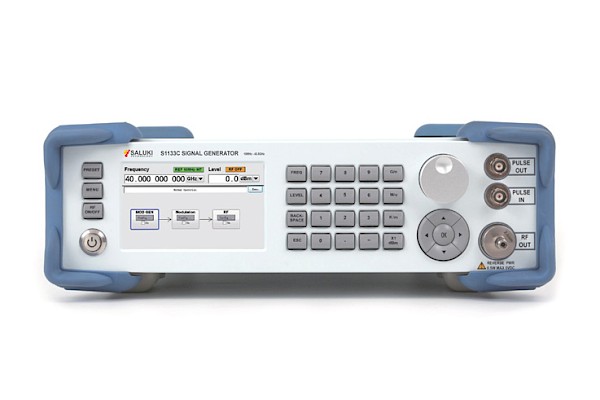

S1133 Series Microwave Analog Signal Generator

Description

S1133 series microwave analog signal generator is an ultra-low phase noise, high power output signal generator covering a continuous frequency range from 10MHz to 12GHz, 24GHz, 43.5GHz and 67GHz, with frequency resolution as low as 0.01 Hz. The S1133 series signal generator supports narrow pulse modulation. It is a cost-effective product that focuses on the application where excellent spectral purity, wide output power range and portability are necessary. Applications: Local Oscillator Replacement / Component Test / Receiver Sensitivity Test/R&D low noise microwave generator

Key Features

• Frequency range: 10MHz to 12GHz/24GHz/43.5GHz/67GHz
• Maximum output power: ≥+20dBm

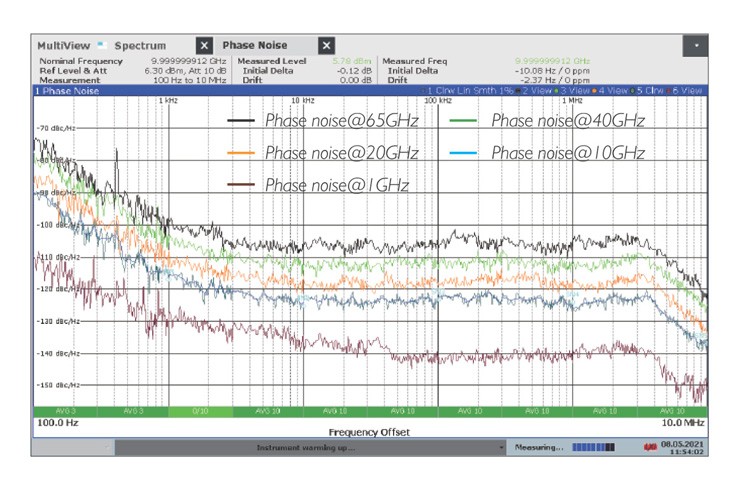

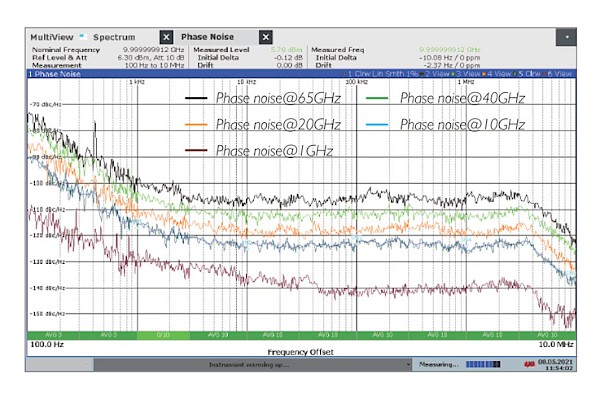

• Phase noise: <-116dBc/Hz (10GHz, 10kHz offset)
• Fast frequency switching time <10us
• Narrow pulse modulation, minimum pulse width 50ns
• Rise/fall time 10ns
• Compact, light weight
• Balance budget & performance to applications

Options

Main Machine S1133A Analog Signal Generator 10 MHz to 12 GHz S1133B Analog Signal Generator 10 MHz to 24 GHz S1133C Analog Signal Generator 10 MHz to 43.5 GHz S1133D Analog Signal Generator 10 MHz to 67 GHz Options S1133-CL 1.6GHz Clock Input& Output S1133-LF LF Output / 100kHz to 10MHz low frequency output
